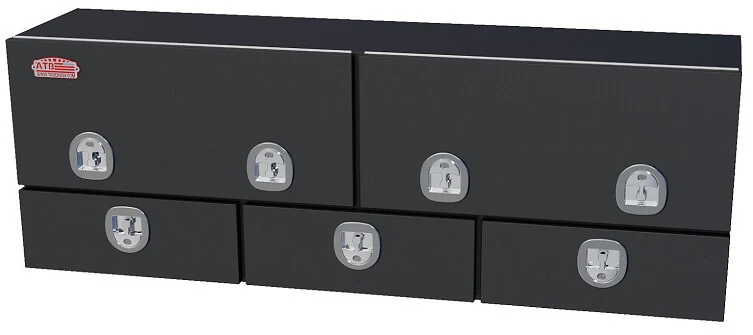

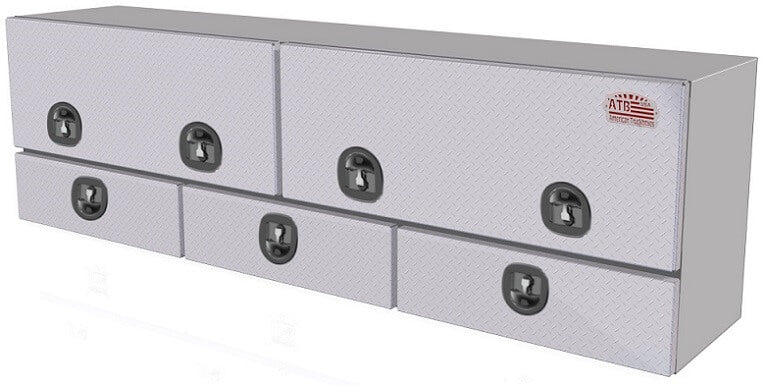

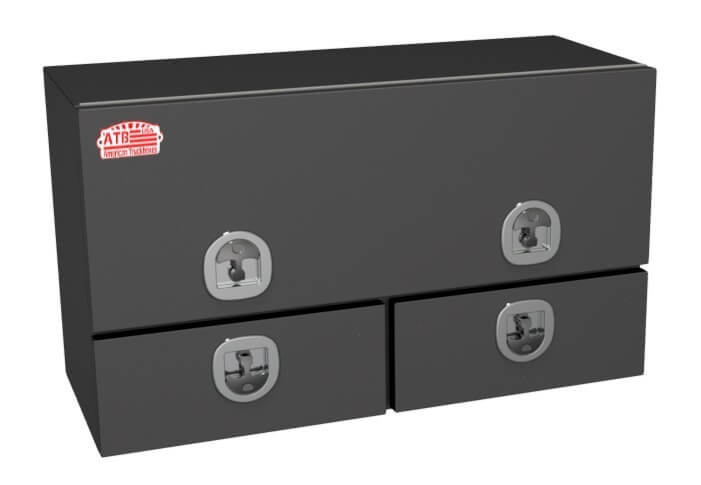

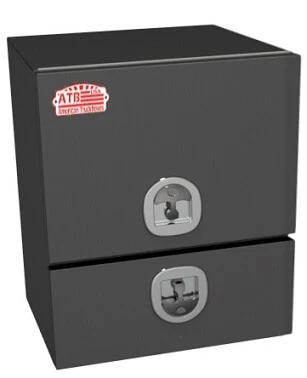

ATB Top Mount Drawer Utility Toolbox

ATB top mount utility boxes with drawers are available in aluminum or steel.

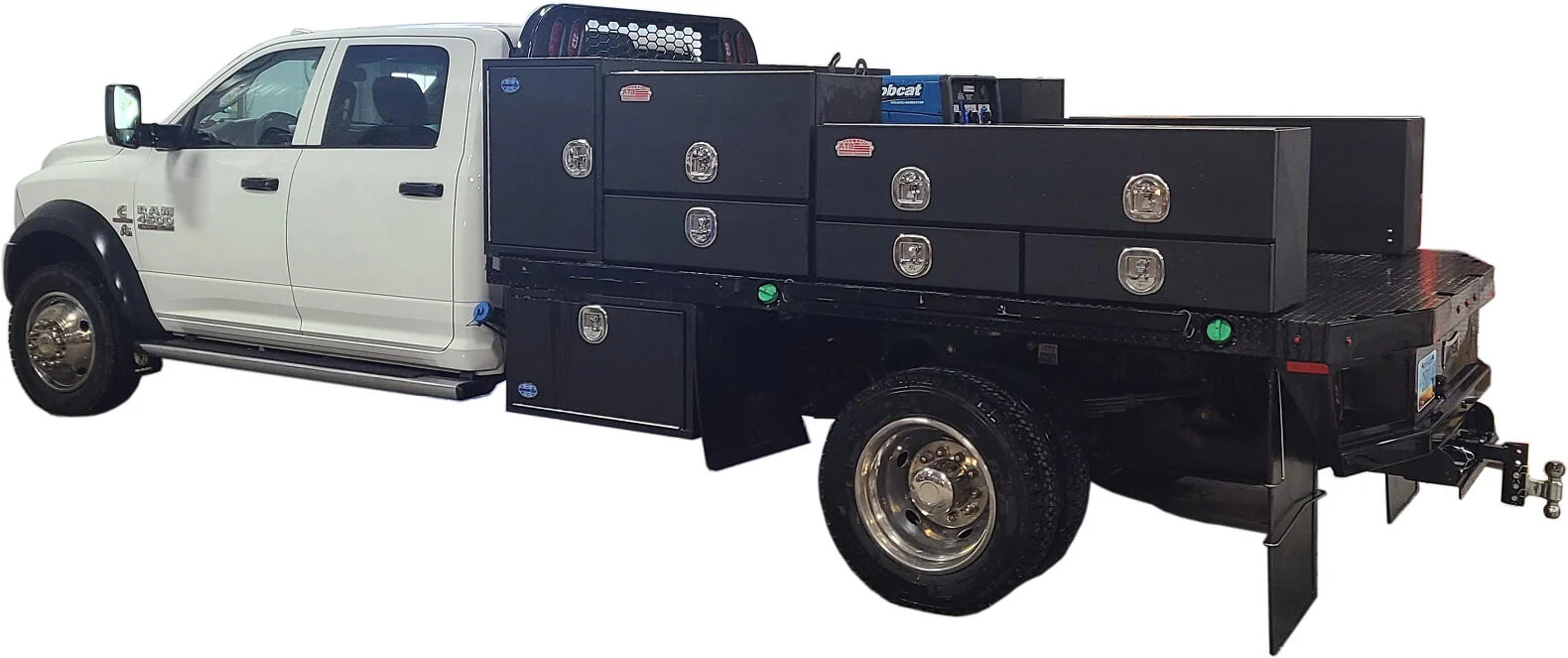

These drawer utility boxes are heavy duty, high capacity and offer easy access from the side of your truck or flatbed. The box can be mounted on top of bed rails and flatbeds or on any contractor's service vehicle.

The box features a fully concealed rain gutter and bulb-type automotive sealing door gasket.

ATB Flat Face Top Mount Drawer Utility Box Features:

• Choose 12 gauge aluminum or 14 gauge steel design.
• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of lid.
• Heavy duty drawer slides.
• Channel braced reinforced doors with gas springs.
• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Zinc epoxy primer with MR powder baked topcoat finish.
• Fully concealed rain gutter, with automotive type weather seal.

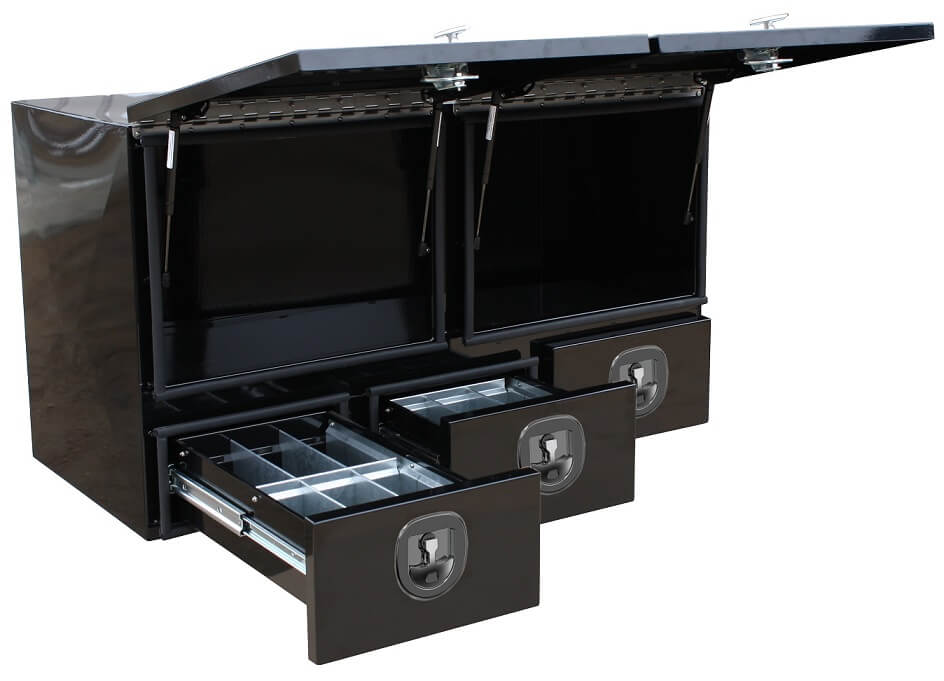

• Drawers with inside adjustable compartments.
• Mounting kit available as optional add-on accessory.

ATB Flat Face Top Mount Drawer Toolbox Sizes & Dimensions:

Aluminum

• 48"L x 14"W x 21"H: Single top door / 2 bottom drawers / 92 pounds
• 60"L x 14"W x 21"H: Single top door / 2 bottom drawers / 112 pounds
• 72"L x 14"W x 21"H: Double top door / 3 bottom drawers / 138 pounds
• 82"L x 14"W x 21"H: Double top door / 3 bottom drawers / 152 pounds
• 94"L x 14"W x 21"H: Double top door / 3 bottom drawers / 172 pounds
• 36"L x 16"W x 21"H: Single top door / 1 bottom drawer / 70 pounds
• 48"L x 16"W x 21"H: Single top door / 2 bottom drawers / 102 pounds
• 60"L x 16"W x 21"H: Single top door / 2 bottom drawers / 125 pounds
• 72"L x 16"W x 21"H: Double top door / 3 bottom drawers / 152 pounds
• 82"L x 16"W x 21"H: Double top door / 3 bottom drawers / 168 pounds
• 94"L x 16"W x 21"H: Double top door / 3 bottom drawers / 188 pounds

• 36"L x 20"W x 28"H: Single top door / 1 bottom drawer / 98 pounds
• 48"L x 20"W x 28"H: Single top door / 2 bottom drawers / 140 pounds
• 60"L x 20"W x 28"H: Single top door / 2 bottom drawers / 167 pounds
• 72"L x 20"W x 28"H: Double top door / 3 bottom drawers / 248 pounds
• 82"L x 20"W x 28"H: Double top door / 3 bottom drawers / 268 pounds
• 94"L x 20"W x 28"H: Double top door / 3 bottom drawers / 294 pounds

Steel

• 48"L x 14"W x 21"H: Single top door / 2 bottom drawers / 178 pounds
• 60"L x 14"W x 21"H: Single top door / 2 bottom drawers / 215 pounds
• 72"L x 14"W x 21"H: Double top door / 3 bottom drawers / 260 pounds
• 82"L x 14"W x 21"H: Double top door / 3 bottom drawers / 290 pounds
• 94"L x 14"W x 21"H: Double top door / 3 bottom drawers / 324 pounds
• 36"L x 16"W x 21"H: Single top door / 1 bottom drawer / 142 pounds
• 48"L x 16"W x 21"H: Single top door / 2 bottom drawers / 195 pounds
• 60"L x 16"W x 21"H: Single top door / 2 bottom drawers / 236 pounds
• 72"L x 16"W x 21"H: Double top door / 3 bottom drawers / 284 pounds
• 82"L x 16"W x 21"H: Double top door / 3 bottom drawers / 316 pounds
• 94"L x 16"W x 21"H: Double top door / 3 bottom drawers / 354 pounds

• 36"L x 20"W x 28"H: Single top door / 1 bottom drawer / 142 pounds
• 48"L x 20"W x 28"H: Single top door / 2 bottom drawers / 192 pounds
• 60"L x 20"W x 28"H: Single top door / 2 bottom drawers / 264 pounds
• 72"L x 20"W x 28"H: Double top door / 3 bottom drawers / 376 pounds
• 82"L x 20"W x 28"H: Double top door / 3 bottom drawers / 416 pounds
• 94"L x 20"W x 28"H: Double top door / 3 bottom drawers / 464 pounds
