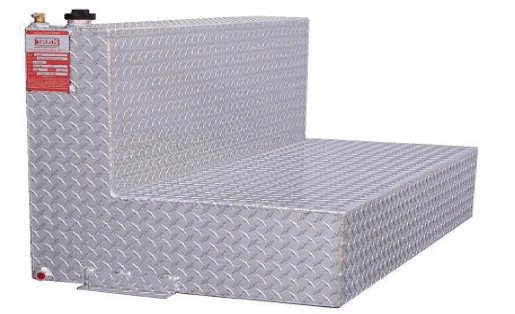

ATI Split L-Shape Refueling Transfer Tank
Aluminum Tank Industries Split L-Shape DOT approved Refueling Transfer Tanks are legal in all 50 states for gasoline, kerosene, methanol, diesel, and aviation fuel. Split L-Shape refueling tanks range in size from 72 to 110 gallons.
The split tanks are designed for transporting and refueling two separated liquids legally on your flat bed or in the bed of your pickup truck.
The Two- 2” bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best.
Whether you are a farmer, contractor, municipality, or simply a private citizen, you can trust that your ATI tank will hold up and last a lifetime.
Note: Standard aluminum transfer tanks are only designed to hold fuel pumps up to 15 gpm or 30 pounds of weight. Heavier fuel pumps require a heavy duty aluminum tank. Call or contact us if you need a heavy duty tank.
ATI Split L-Shape Transfer Tank Sizes:
- 85 Gallon (42/42 gal) - 57 inches long by 30 inches wide by 24 inches high
- 95 Gallon (47/47 gal) - 48.5 inches long by 33 inches wide by 26 inches high
All ATI refueling tanks come standard with the following:
- Special Permit issued by the US Department of Transportation.
- Legal for gas, diesel, methanol, kerosene, aviation fuel, and other liquids.
- Commercial grade lockable vent / prevent filler cap.
- Fully baffled to reduce movement of contents.
- Two 2 inch NPT reinforced bungs for superior strength.
- A 3/8″npt drain plug,
- Hold down brackets.
- Pressure and leak detection test.
- Clean and free of debris inside and outside of the tank.
- 1 year limited warranty.
- a vent/prevent cap,
- Fully welded baffles to reduce slosh and add strength.
- Designed for use with transfer pumps up to 30 pounds.
These tanks are constructed from rugged diamond plate aluminum and are all available with a black or white powder coated finish.
Aluminum Tank Industries has been granted a special permit from the U.S. Department of Transportation for the legal manufacture, mark and selling of legal aluminum refueling transfer tanks. These tanks can be used for commercial and state applications.
