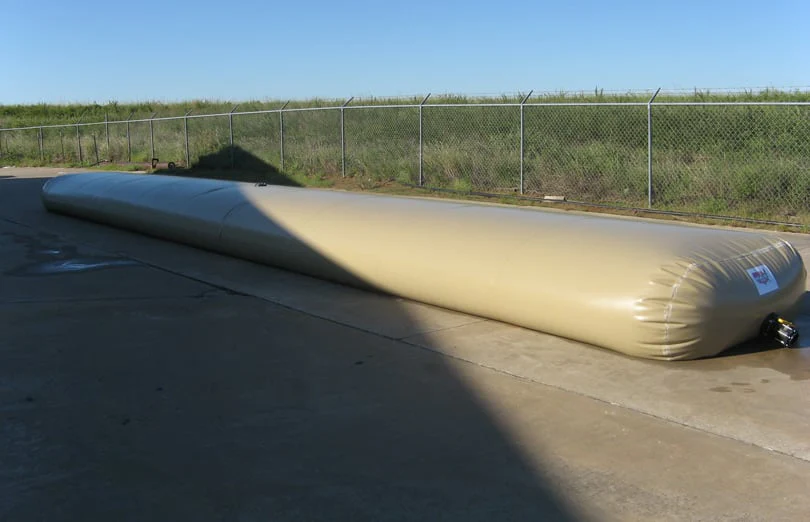

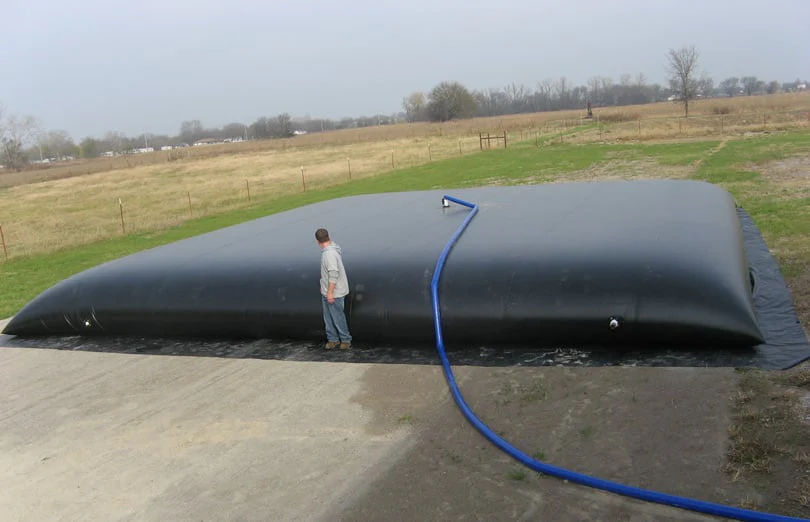

Husky Grey Water Storage Bladder Tank

Husky grey water pillow or bladder tanks are designed for liquid storage, transportation and containment needs.

Gray water pillow bladder tanks are used on farms, nurseries, firefighting. Available sizes range from 25 gallons to 20,000 gallons.

Grey Water Storage Bladder Tank Applications:

• Wastewater containment
• Rainwater Collection
• Firefighting
• Pickup truck tanks
• Flat bed truck tanks for transportation of water/liquid
• Railcar tanks
• Food grade products such as molasses, wine, olive oil, vegetable oil, etc.

Husky potable water bladders are air pressure tested before shipping and are easy to handle and fold down for compact, easy storage.

Features

• Designed with 30 oz Acrylic PVC vinyl.
• 25 gallon to 1,000 gallon sizes ship by UPS.
• Maneuvering straps near the corners and every 5' down the sides.
• Double T style vents.

Standard Fittings:

25 to 100 Gallons:

• 4" fill port inlet.
• 3/4" outlet with ball valve.

150 to 500 Gallons:

• 4" fill port inlet.
• 1.5" outlet with ball valve.

600 to 1,000 Gallons:

• 1.5" inlet with plug.

• 1.5" pvc outlet with ball valve.

1,250 to 5,000 Gallons:

• 2" inlet with plug.
• 2" outlet with ball valve.

Dimensions (filled size):

• 25 gallons: 24" W x 36" L x 8" H
• 50 gallons: 36" W x 52" L x 9" H
• 75 gallons: 42" W x 54" L x 9" H
• 100 gallons: 48" W x 66" L x 9" H
• 150 gallons: 60" W x 60" L x 12" H
• 250 gallons: 60" W x 84" L x 14" H
• 500 gallons: 84" W x 108" L x 16" H
• 750 gallons: 99" W x 114" L x 16" H
• 1,000 gallons: 9' W x 11' L x 16" H
• 1,250 gallons: 9'6" W x 12'4" L x 18" H
• 1,500 gallons: 10' W 14' L x 18" H
• 2,000 gallons: 10'6" W x 14'6" L x 22" H
• 2,500 gallons: 12' W x 14'6" L x 24" H
• 3,000 gallons: 13'6" W x 15' L x 24" H
• 4,000 gallons: 14' W x 18' L x 27" H
• 5,000 gallons: 15'6" W x 19'6" L x 27" H
