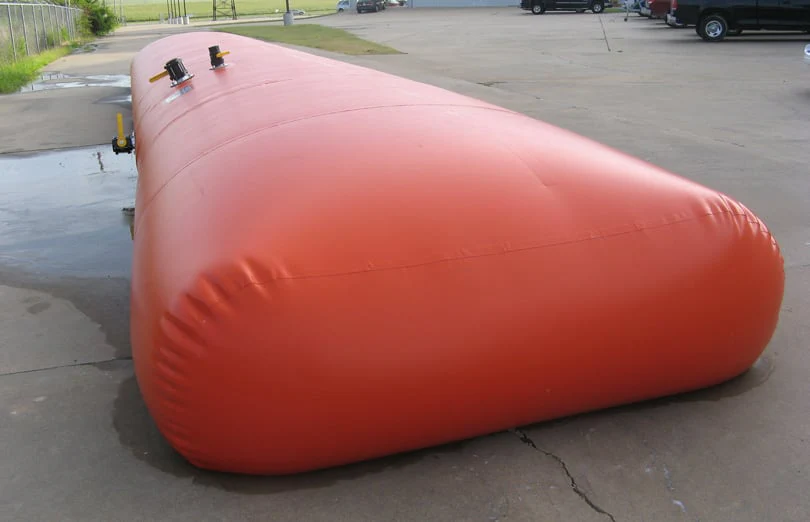

Husky Potable Water Storage Bladder Tank

Husky Potable water pillow or bladder tanks are designed for liquid storage, transportation and containment needs. The potable water bladder tanks are specifically designed to store drinking water.

The potable water bladders are small enough to fit in a in a backpack or large enough to haul on railcar. Available sizes range from 25 gallons to 20,000 gallons.

Potable Water Storage Bladder Tank Applications:

• Drinking Water Storage

• Rainwater Collection

• Rural Water Supply
• Firefighting
• Pickup truck tanks
• Flat bed truck tanks for transportation of water/liquid
• Railcar tanks
• Food grade products such as molasses, wine, olive oil, vegetable oil, etc.

Husky potable water bladders are air pressure tested before shipping and are easy to handle and fold down for compact, easy storage.

Features

• NSF 61 (potable drinking water)
• Provide drinking water storage for disaster area victims.

• Rainwater collection for irrigation systems.

• Water storage for greenhouse nurseries.
• Farming, watering livestock or treating with insecticides.
• 25 gallon to 1,000 gallon sizes ship by UPS.
• Maneuvering straps near the corners and every 5' down the sides.
• Double T style vents.

Standard Fittings:

25 to 100 Gallons:

• 4" fill port inlet.
• 3/4" pvc outlet with ball valve.

150 to 500 Gallons:

• 4" fill port inlet.
• 1.5" pvc outlet with ball valve.

600 to 1,000 Gallons:

• 1.5" inlet with plug.

• 1.5" pvc outlet with ball valve.

1,250 to 5,000 Gallons:

• 2" inlet with plug.
• 2" pvc outlet with ball valve.

Dimensions (filled size):

• 25 gallons: 24" W x 36" L x 8" H
• 50 gallons: 36" W x 52" L x 9" H
• 75 gallons: 42" W x 54" L x 9" H
• 100 gallons: 48" W x 66" L x 9" H
• 150 gallons: 60" W x 60" L x 12" H
• 250 gallons: 60" W x 84" L x 14" H
• 500 gallons: 84" W x 108" L x 16" H
• 750 gallons: 99" W x 114" L x 16" H
• 1,000 gallons: 9' W x 11' L x 16" H
• 1,250 gallons: 9'6" W x 12'4" L x 18" H
• 1,500 gallons: 10' W 14' L x 18" H
• 2,000 gallons: 10'6" W x 14'6" L x 22" H
• 2,500 gallons: 12' W x 14'6" L x 24" H
• 3,000 gallons: 13'6" W x 15' L x 24" H
• 4,000 gallons: 14' W x 18' L x 27" H
• 5,000 gallons: 15'6" W x 19'6" L x 27" H
• 6,000 gallons: 16'6" W x 20' L x 30" H
• 10,000 gallons: 20' W x 24' L x 36" H
• 20,000 gallons: 22' W x 31' L x 48" H
