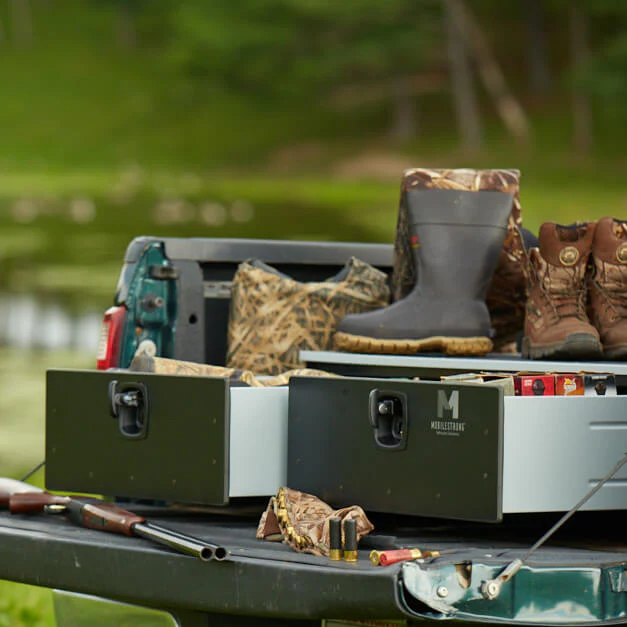

Mobile Strong Truck Bed Storage Drawer

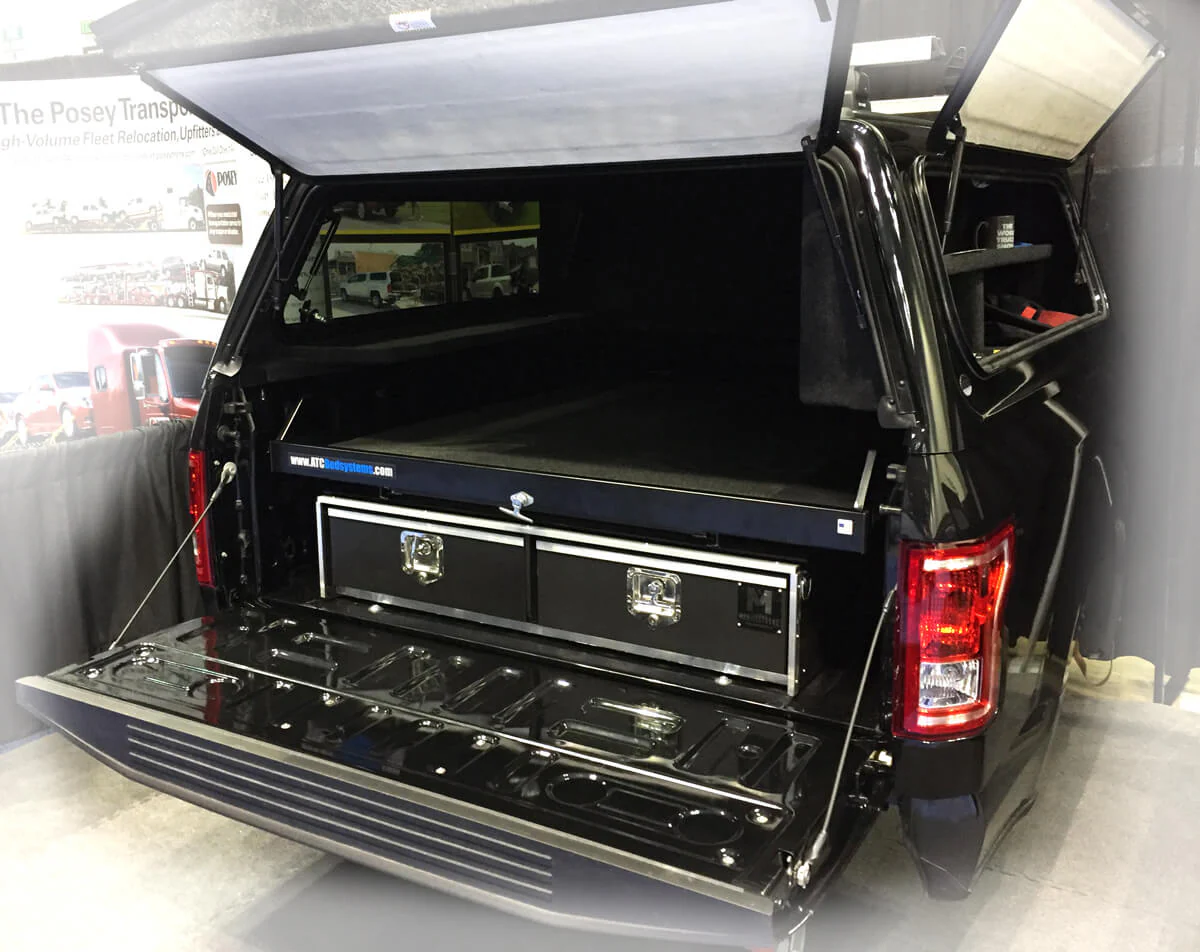

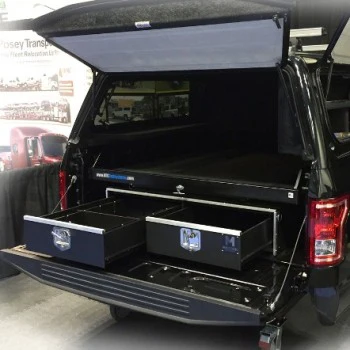

The Mobile Strong Truck Bed storage drawer is available for full size and mid size trucks and is available with an optional top mount bed slide.

The storage drawer is designed with recyclable HDPE (high density polyethylene) and supports a 1,000 pound payload capacity.

Choose from the following storage drawer types:

Medium Duty with Black Carpet Top

Medium Duty with Black Rubber Top

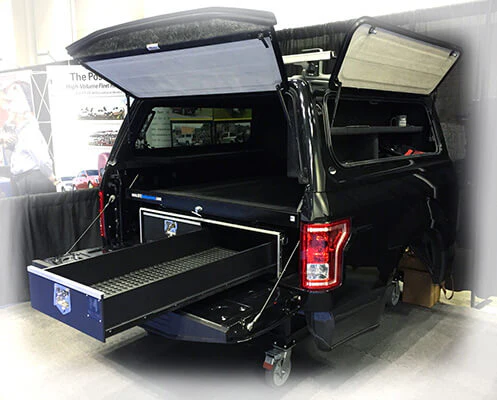

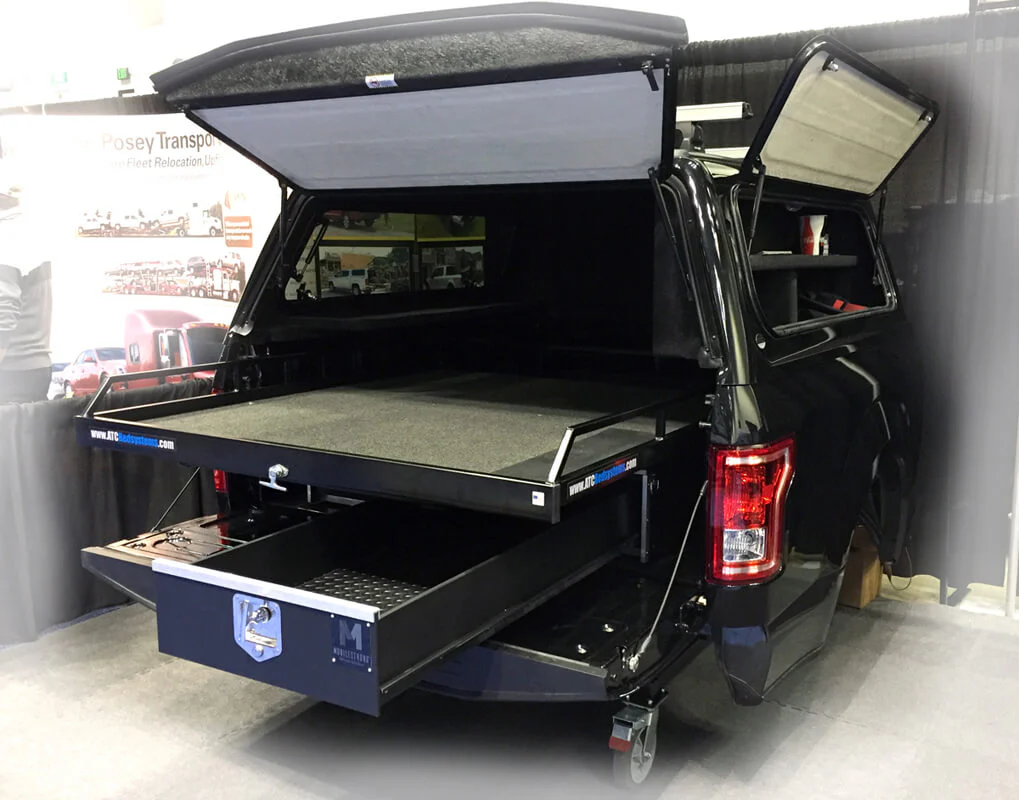

Medium Duty with Top Mount Bed Slide

Heavy Duty with Black Rubber Top

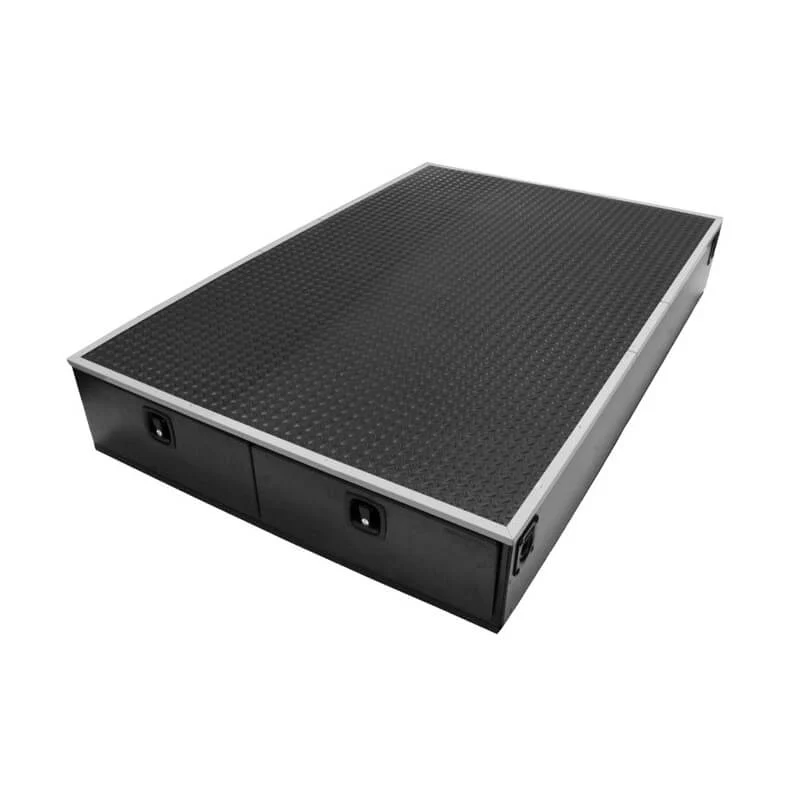

Medium Duty Drawer Box Features:

• Designed with high density polyethylene (HDPE) material.
• Lighter weight vs the heavy duty model.
• Supports up to a 1,000 pound payload capacity evenly distributed.

• 250 pound per drawer capacity evenly distributed.
• Sliding drawer opens 43.5 inches.
• Secure drawers with key locks.
• Weather resistant design.
• D-Ring tie downs.
• Stainless Steel T-handles with lock.
• 5.75 inch drawer height and 20 inch drawer width.

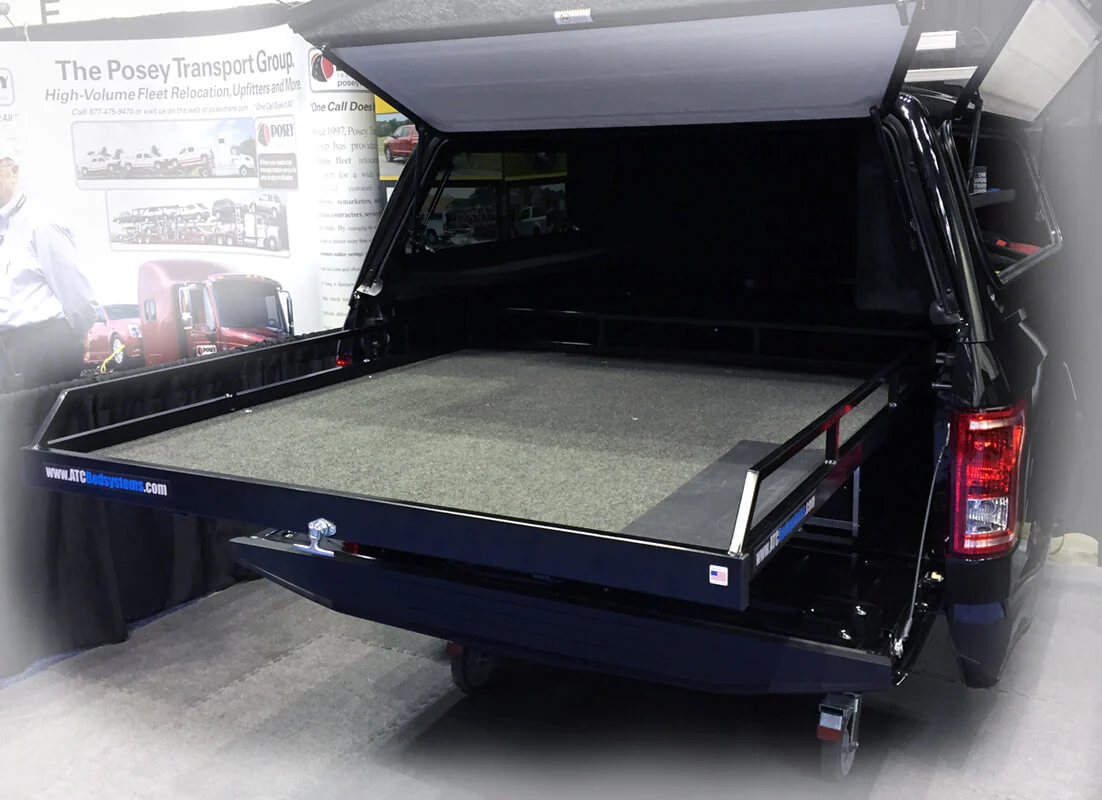

Top Mount Bed Slide Features:

• Powder Coated Steel Frame & Tracks.
• Supports up to an 800 pound weight capacity.
• Reinforced Track System.
• Slide extends 75% out.
• Bed slide covered in all weather rugged carpet.

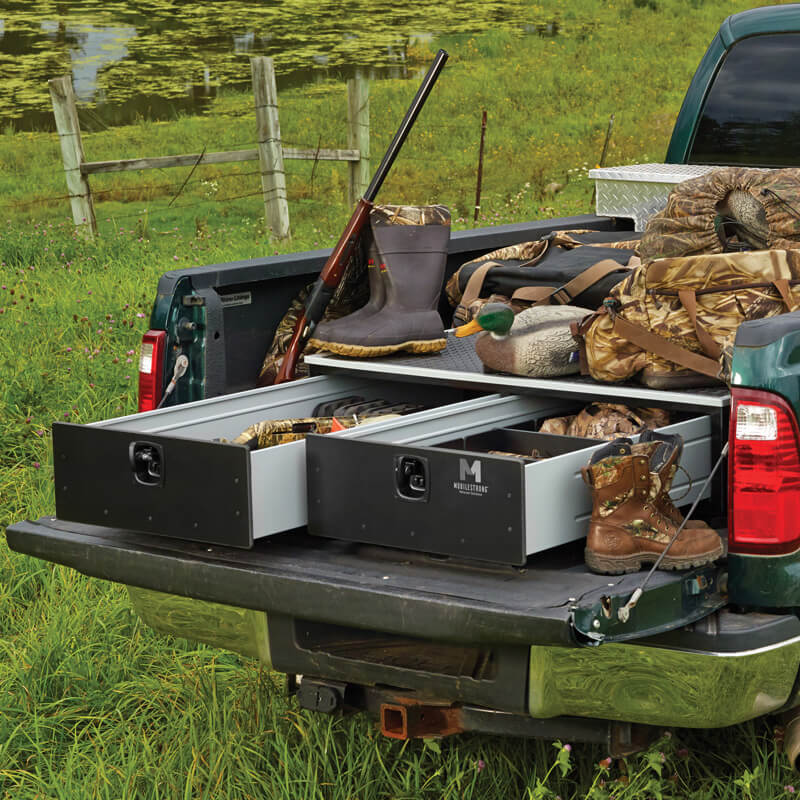

Heavy Duty Drawer Box Features:

• Larger drawer space & thicker construction.
• Aluminum alloy framework.
• Secure drawers with compression T-Locks.
• Weather resistant design.
• 4 Spring Loaded D-Rings built into sides.
• 1/4" thick composite outer shell.
• 3/8" thick phenolic composite drawer fronts.
• 7/16" thick HDPE drawer construction.
• Carpeted drawer liners.

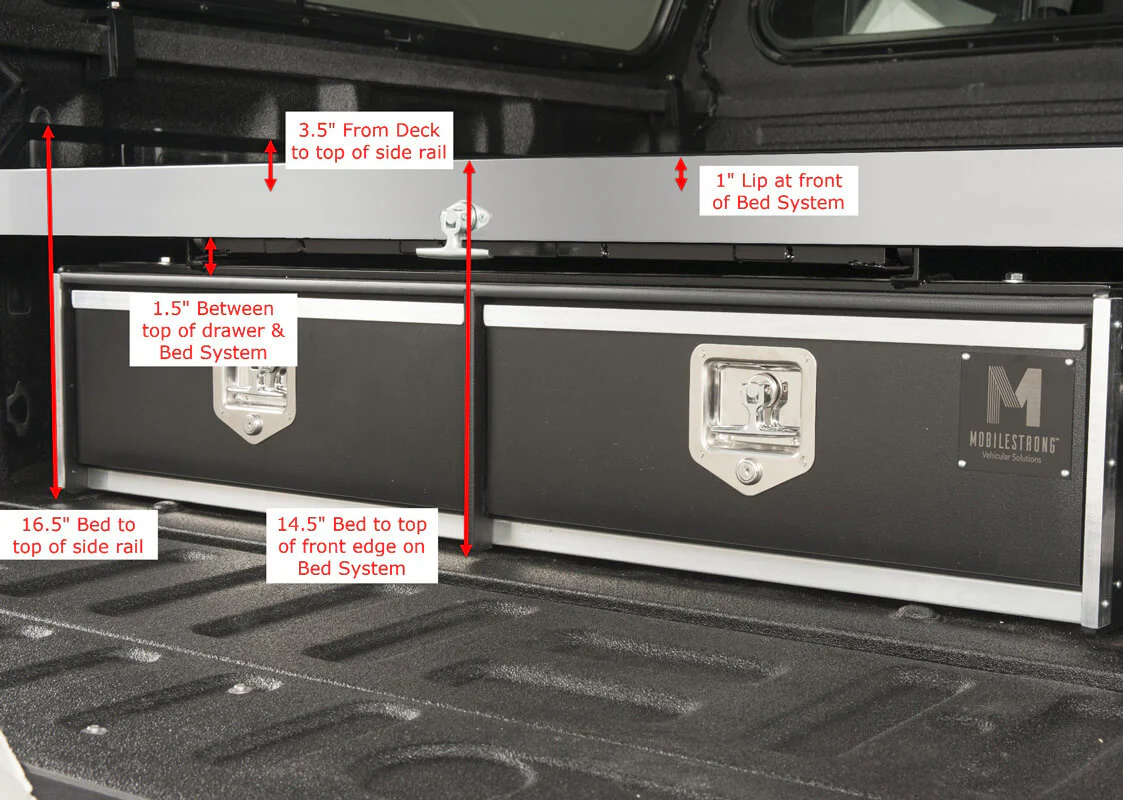

• Inside drawer height of 7.25"H or 11"H / 21.5" drawer width.

Installation & Setup:

• No tools are required for installing the storage units. They are designed so that 2 people can slide the box into the vehicle.
• The Medium Duty models have a 4 D-Ring tie down located on the sides.
• The Heavy Duty models have 4 spring loaded D-Ring tie-downs built-in and sealed into the sides of the unit.
• All storage drawers should be fully secured in the truck bed using the D-rings.
