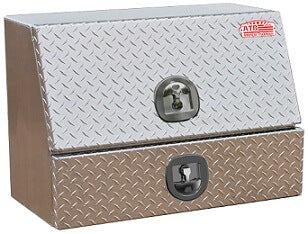

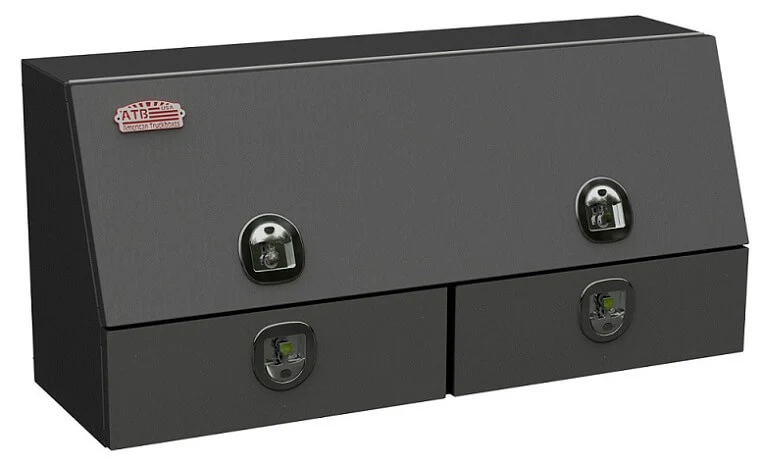

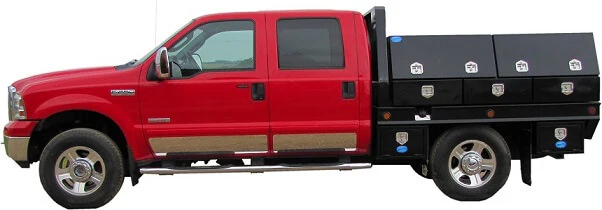

ATB Slanted Top Mount Drawer Utility Toolbox

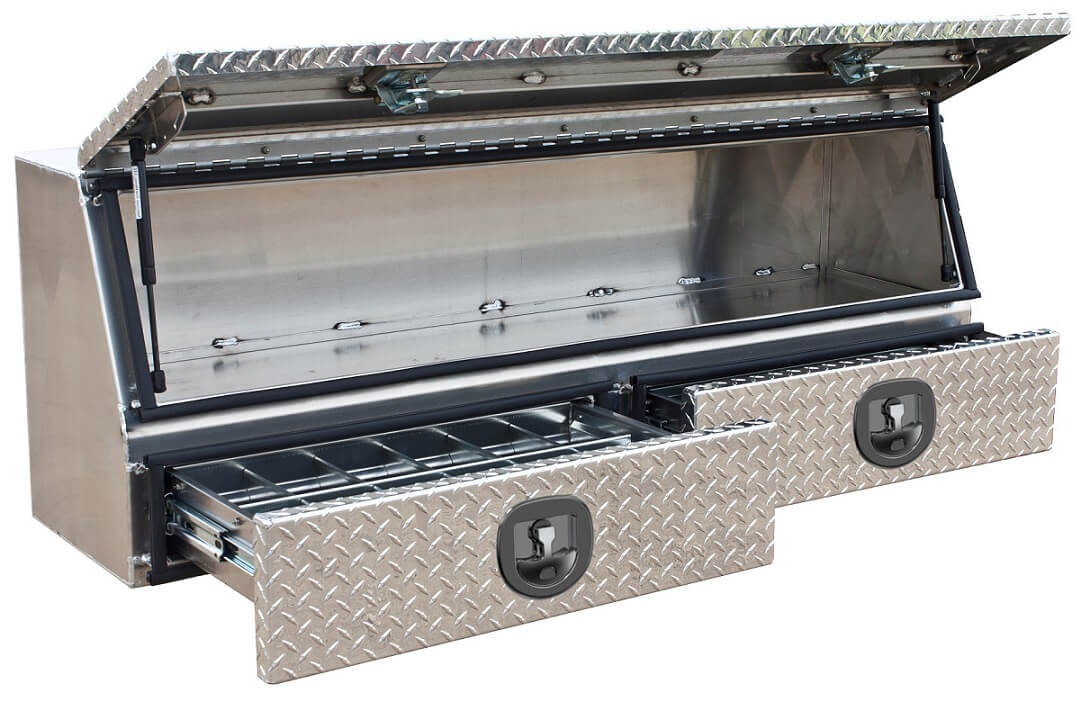

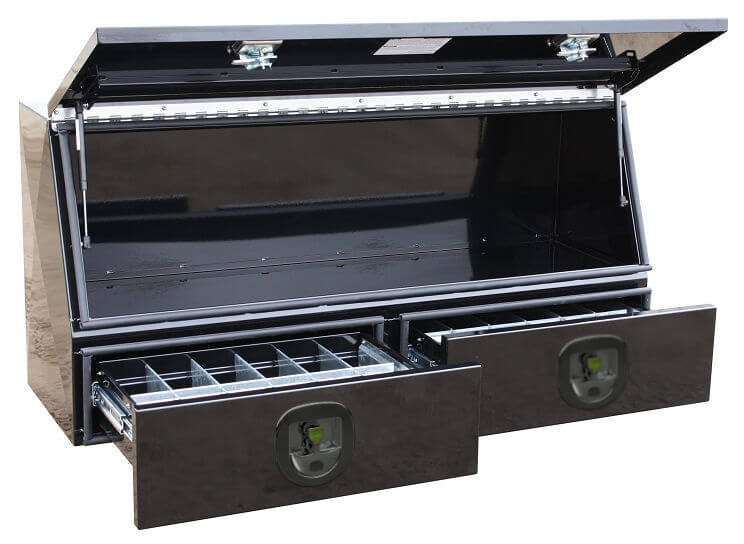

ATB slanted top mount utility boxes with drawers are available in aluminum or steel.

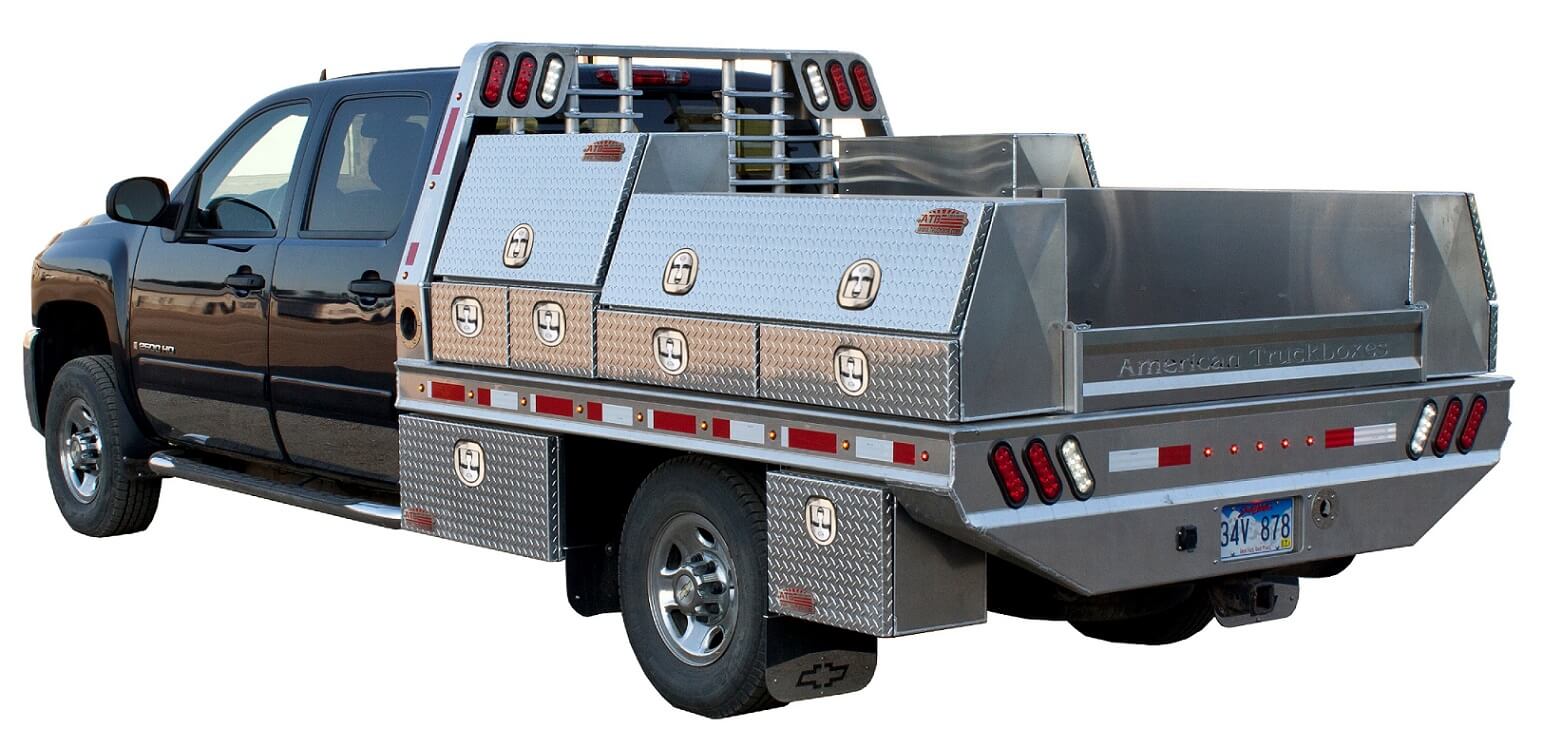

These drawer utility boxes are heavy duty, high capacity and offer easy access from the side of your truck or flatbed. The box can be mounted on top of bed rails and flatbeds or on any contractor's service vehicle.

The box features a fully concealed rain gutter and bulb-type automotive sealing door gasket.

ATB Slanted Top Mount Drawer Utility Box Features:

• Choose 12 gauge aluminum or 14 gauge steel design.
• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of lid.
• Heavy duty drawer slides.
• Channel braced reinforced doors with gas springs.
• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Zinc epoxy primer with MR powder baked topcoat finish.
• Fully concealed rain gutter, with automotive type weather seal.

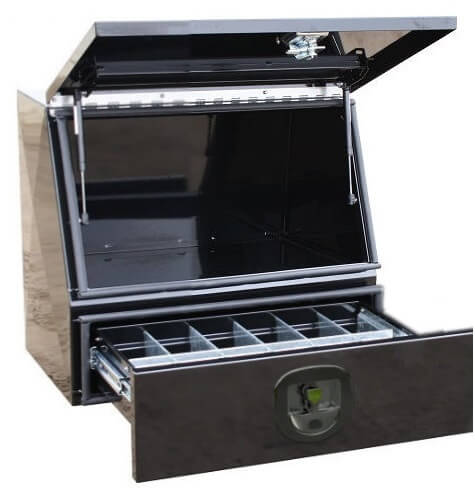

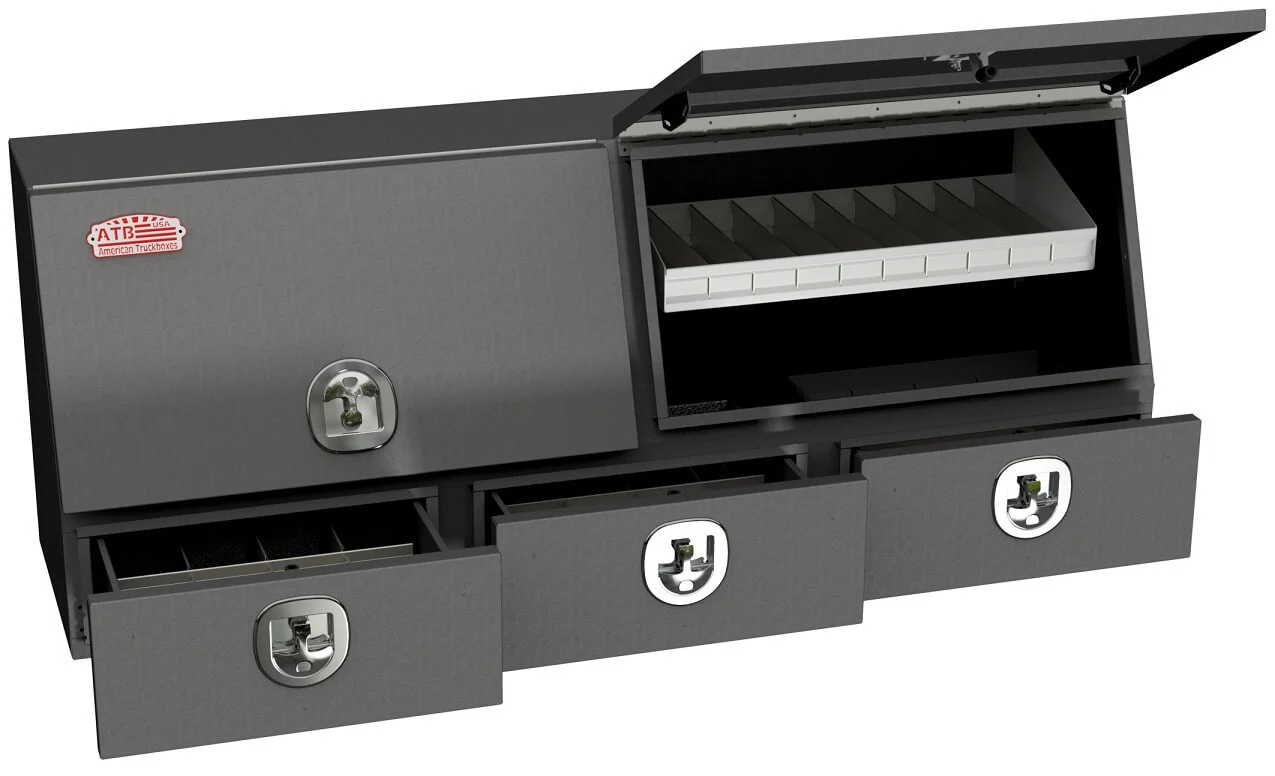

• Drawers with inside adjustable compartments.
• Mounting kit available as optional add-on accessory.

ATB Slanted Top Mount Drawer Toolbox Sizes & Dimensions:

Aluminum

• 48"L x 14"W x 21"H: Single top door / 2 bottom drawers / 90 pounds
• 60"L x 14"W x 21"H: Single top door / 2 bottom drawers / 110 pounds

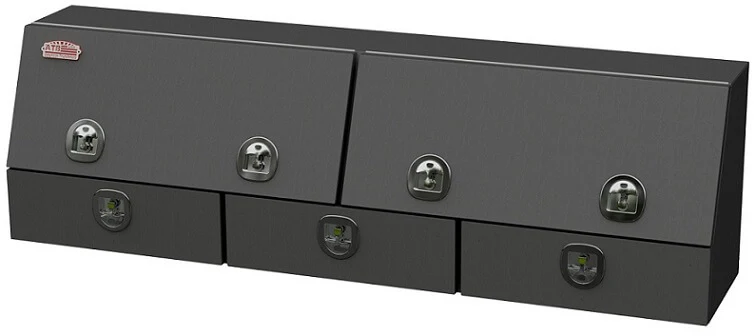

• 72"L x 14"W x 21"H: Double top door / 3 bottom drawers / 134 pounds
• 82"L x 14"W x 21"H: Double top door / 3 bottom drawers / 148 pounds
• 94"L x 14"W x 21"H: Double top door / 3 bottom drawers / 168 pounds
• 36"L x 16"W x 21"H: Single top door / 1 bottom drawer / 68 pounds
• 48"L x 16"W x 21"H: Single top door / 2 bottom drawers / 100 pounds
• 60"L x 16"W x 21"H: Single top door / 2 bottom drawers / 121 pounds
• 72"L x 16"W x 21"H: Double top door / 3 bottom drawers / 148 pounds
• 82"L x 16"W x 21"H: Double top door / 3 bottom drawers / 164 pounds
• 94"L x 16"W x 21"H: Double top door / 3 bottom drawers / 184 pounds
• 24"L x 20"W x 28"H: Single top door / 1 bottom drawer / 69 pounds
• 36"L x 20"W x 28"H: Single top door / 1 bottom drawer / 95 pounds
• 48"L x 20"W x 28"H: Single top door / 2 bottom drawers / 136 pounds
• 60"L x 20"W x 28"H: Single top door / 2 bottom drawers / 162 pounds
• 72"L x 20"W x 28"H: Double top door / 3 bottom drawers / 242 pounds
• 82"L x 20"W x 28"H: Double top door / 3 bottom drawers / 261 pounds
• 94"L x 20"W x 28"H: Double top door / 3 bottom drawers / 285 pounds

Steel

• 48"L x 14"W x 21"H: Single top door / 2 bottom drawers / 172 pounds
• 60"L x 14"W x 21"H: Single top door / 2 bottom drawers / 210 pounds
• 72"L x 14"W x 21"H: Double top door / 3 bottom drawers / 253 pounds
• 82"L x 14"W x 21"H: Double top door / 3 bottom drawers / 285 pounds
• 94"L x 14"W x 21"H: Double top door / 3 bottom drawers / 317 pounds
• 36"L x 16"W x 21"H: Single top door / 1 bottom drawer / 138 pounds
• 48"L x 16"W x 21"H: Single top door / 2 bottom drawers / 190 pounds
• 60"L x 16"W x 21"H: Single top door / 2 bottom drawers / 230 pounds
• 72"L x 16"W x 21"H: Double top door / 3 bottom drawers / 276 pounds
• 82"L x 16"W x 21"H: Double top door / 3 bottom drawers / 308 pounds
• 94"L x 16"W x 21"H: Double top door / 3 bottom drawers / 344 pounds
• 24"L x 20"W x 28"H: Single top door / 1 bottom drawer / 138 pounds
• 36"L x 20"W x 28"H: Single top door / 1 bottom drawer / 186 pounds
• 48"L x 20"W x 28"H: Single top door / 2 bottom drawers / 256 pounds
• 60"L x 20"W x 28"H: Single top door / 2 bottom drawers / 305 pounds
• 72"L x 20"W x 28"H: Double top door / 3 bottom drawers / 366 pounds
• 82"L x 20"W x 28"H: Double top door / 3 bottom drawers / 404 pounds
• 94"L x 20"W x 28"H: Double top door / 3 bottom drawers / 451 pounds

Other Tool Box Options:

• For more options see other ATB Toolboxes.
