ATB Truck Cargo Box

The ATB cargo box is available in aluminum or steel and is designed for semi trucks and trailers.

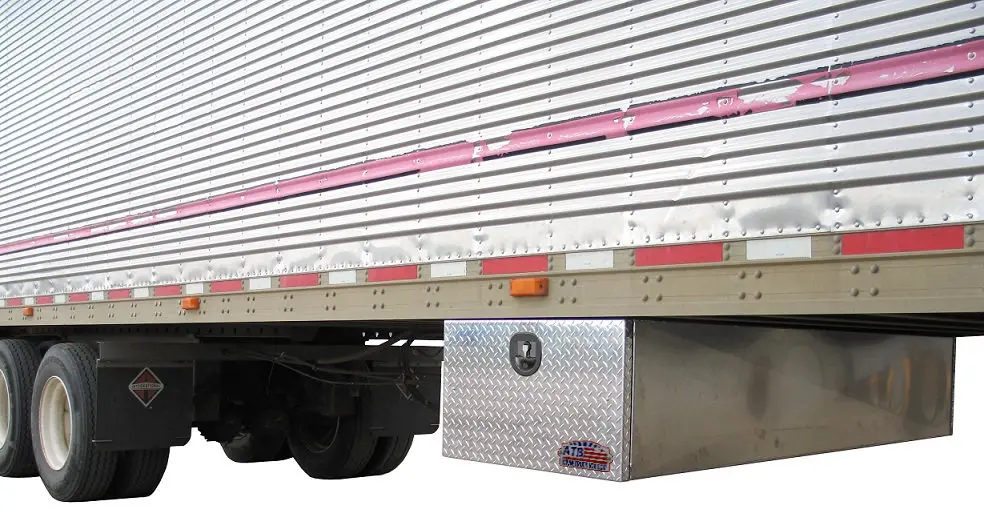

The cargo box can be top mounted or under mounted on your semi truck or trailer.

The cargo box have doors on each side of the box and are available with a drop open, side open or double door side open design.

ATB's cargo boxes are lockable, theft resistant and water resistant storage boxes.

ATB Truck Cargo Box Features:

• Choose aluminum with tread plate door or aluminum with stainless steel door.
• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of door.
• Fully concealed rain gutter with automotive weather seal.
• Gusseted corners.
• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Two Lockable Doors on each side of the box.
• Zinc epoxy primer with MR powder baked topcoat finish.
• Mounting kit available as optional add-on accessory.

ATB Truck Cargo Box Sizes / Dimensions / Weight (aluminum / steel):

Single Drop Down Door

• 30"L x 60"W x 20"H: Single drop down door / 102 / 178 pounds
• 18"L x 72"W x 18"H: Single drop down door / 82 / 138 pounds
• 24"L x 72"W x 18"H: Single drop down door / 96 / 164 pounds
• 36"L x 72"W x 18"H: Single drop down door / 124 / 222 pounds
• 24"L x 84"W x 18"H: Single drop down door / 106 / 186 pounds
• 36"L x 84"W x 18"H: Single drop down door / 140 / 250 pounds
• 36"L x 96"W x 18"H: Single drop down door / 158 / 280 pounds
• 24"L x 101"W x 18"H: Single drop down door / 128 / 230 pounds
• 36"L x 101"W x 18"H: Single drop down door / 168 / 310 pounds

Single Side Open Door

• 18"L x 72"W x 18"H: Single side open door / 80 / 138 pounds
• 24"L x 72"W x 18"H: Single side open door / 94 / 164 pounds
• 36"L x 72"W x 18"H: Single side open door / 124 / 214 pounds
• 24"L x 84"W x 18"H: Single side open door / 108 / 186 pounds
• 36"L x 84"W x 18"H: Single side open door / 140 / 242 pounds
• 36"L x 96"W x 18"H: Single side open door / 160 / 270 pounds

Double Side Open Doors

• 30"L x 60"W x 20"H: Double Side Open door / 102 / 172 pounds
• 18"L x 72"W x 18"H: Double Side Open door / 84 / 138 pounds
• 24"L x 72"W x 18"H: Double Side Open door / 98 / 164 pounds
• 36"L x 72"W x 18"H: Double Side Open door / 126 / 214 pounds
• 24"L x 84"W x 18"H: Double Side Open door / 110 / 186 pounds
• 36"L x 84"W x 18"H: Double Side Open door / 140 / 242 pounds
• 36"L x 96"W x 18"H: Double Side Open door / 164 / 270 pounds
• 24"L x 101"W x 18"H: Double Side Open door / 130 / 288 pounds
• 36"L x 101"W x 18"H: Double Side Open door / 172 / 360 pounds



Other Tool Box Options:

• For more options see other Behind Cab Tool Boxes or all ATB Toolboxes.
