ATB Angled Tunnel Toolbox with Drawers

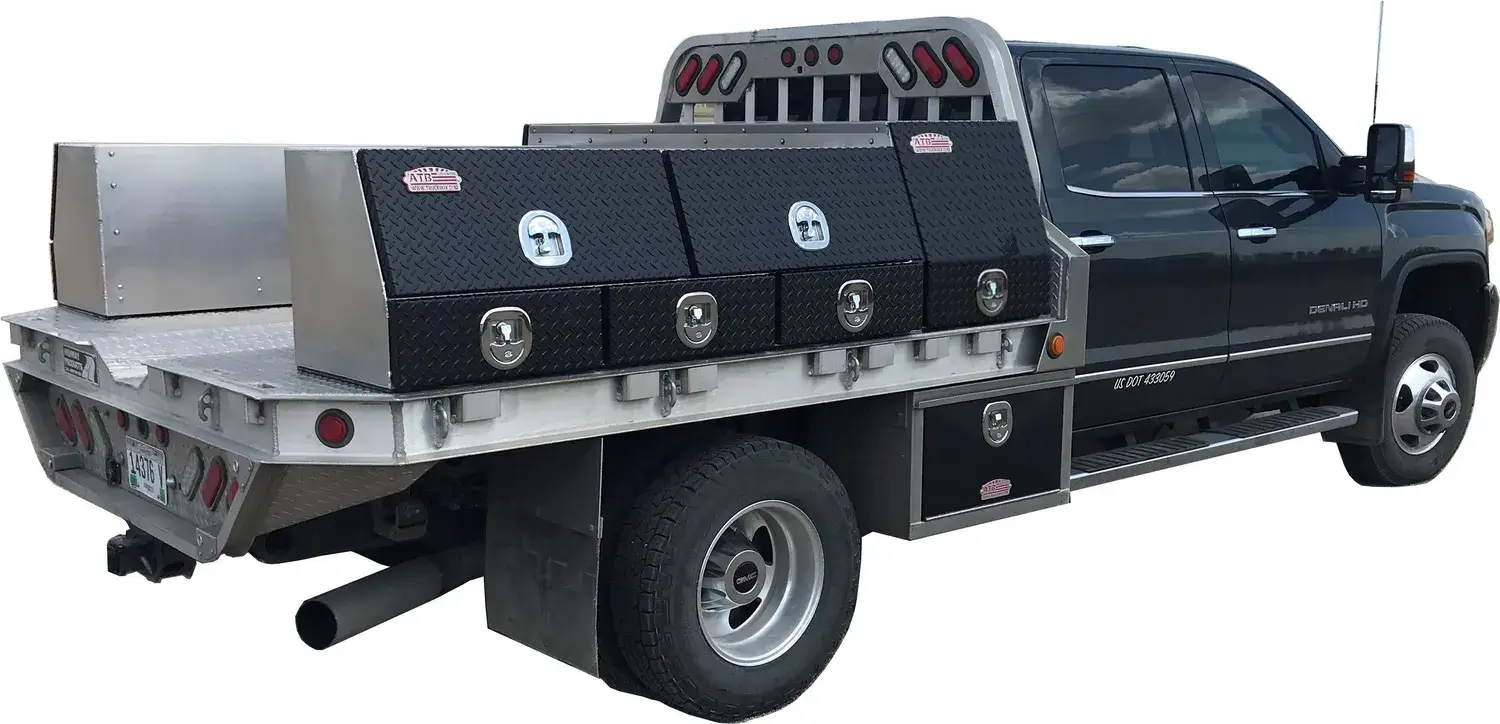

ATB top mount angled tunnel boxes with drawers are heavy duty boxes available in aluminum or steel. These boxes offer easy access from the side of your truck or trailer.

The boxes are stored directly behind the truck cab with significant storage space for tools, hardware, and parts.  The box includes pull out drawers on each side of the box.

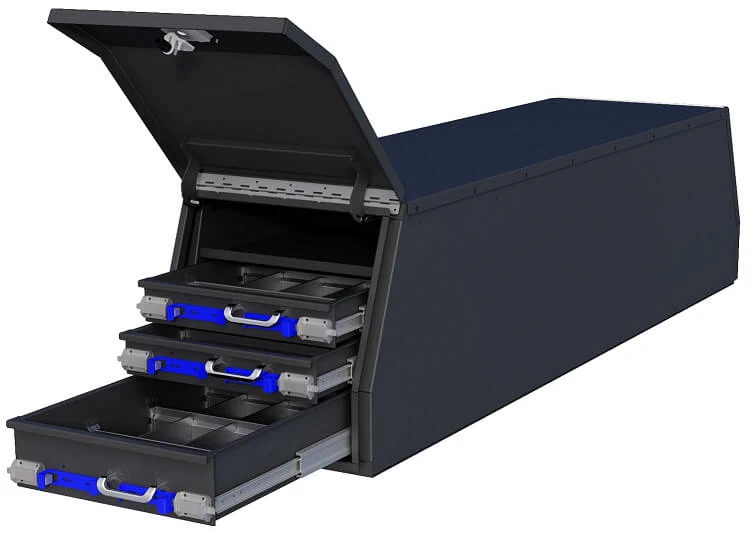

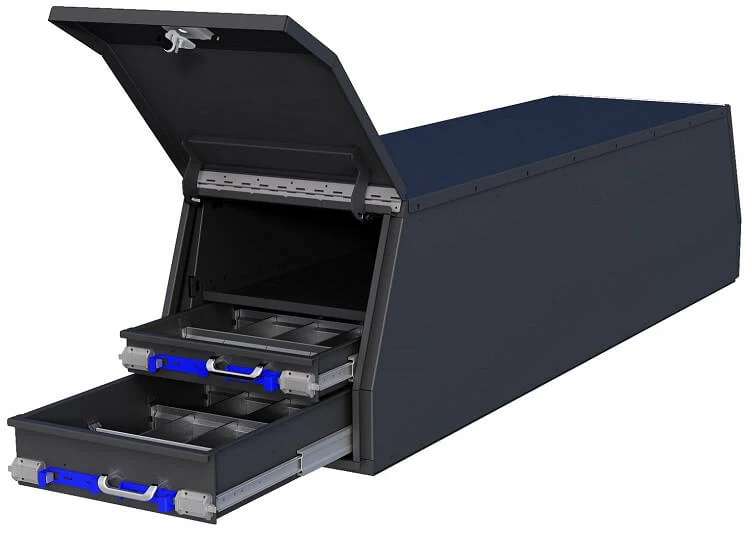

Choose from two or three pull out drawers on each side of the box.

ATB Tunnel Toolbox with Split Drawers Features:

• Choose 12 gauge aluminum or 14 gauge steel design.
• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of door.
• Fully concealed rain gutter with automotive weather seal.

• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Zinc epoxy primer with MR powder baked topcoat finish.
• Galvanized 18g hemmed adjustable dividers.
• Heavy duty drawers with inside adjustable compartments.
• Drawers with inside adjustable compartments.
• Mounting kit available as optional add-on accessory.

ATB Tunnel Toolbox with Split Drawers Sizes & Dimensions:

Aluminum

• 82"L x 24"W x 21"H: .125" / .1 TP / 2 drawers on each side / 190 pounds
• 82"L x 24"W x 28"H: .125" / .1 TP / 3 drawers on each side / 210 pounds
• 96"L x 24"W x 21"H: .125" / .1 TP / 2 drawers on each side / 300 pounds
• 96"L x 24"W x 28"H: .125" / .1 TP / 3 drawers on each side / 368 pounds

Steel

• 82"L x 24"W x 21"H: 14g steel / 2 drawers on each side / 340 pounds
• 82"L x 24"W x 28"H: 14g steel / 3 drawers on each side / 375 pounds
• 96"L x 24"W x 21"H: 14g steel / 2 drawers on each side / 480 pounds
• 96"L x 24"W x 28"H: 14g steel / 3 drawers on each side / 590 pounds

Other Tool Box Options:

• For more options see other ATB Toolboxes or all truck toolboxes.
