ATB Generator Storage Box Side Open

The ATB side open generator storage box can be mounted on top or on the side of your truck or trailer.

The aluminum generator storage box is available in multiple sizes and is designed to store a wide range of generator models.

*Additional product specs are available under the product spec sheets below.

ATB Generator Storage Box Features:

• Smooth .125 inch thick Aluminum design.
• Fully seam welded on all seams and corners.

• Stainless steel continuous hinge on full length of door.
• Heavy duty 500 lbs. drawer slides.
• Drawer slide-out with lock-in / lock-out slides for easy service.
• Lockable stainless steel latch.
• Adjustable lock striker for positive weather seal.
• Durable stainless steel intake and exhaust grill / left / right / back.

• Front access for convenient servicing of generator.
• Automotive style latch with smooth rotary action.
• Optional Add On: stainless steel front intake grill.
• Optional Add On: mounting kit.

Note: a minimum of 5 inch distance of space from the air grill is required on the full face of the air intake and exhaust grill for proper air movement.

ATB Side Open Generator Storage Box Dimensions / Generator Model / Weight:

• 24"W x 24"D x 22"H: Honda EU1000i / Yamaha EF1000i & EF2000i / Champion 2000wi / 76 pounds
• 26"W x 28"D x 24"H: Champion 3500 Watt / Yamaha EF2600 / 79 pounds
• 20"W x 26"D x 24"H: Honda EU2000i  / 74 pounds
• 26"W x 24"D x 24"H: Yamaha EF2400i & EF2800i / 76 pounds
• 30"W x 24"D x 24"H: Champion 3100wi & 3500wi / 78 pounds
• 36"W x 24"D x 24"H: 4000 watt / 92 pounds
• 28"W x 30"D x 26"H: Honda EU3000i / Yamaha EF3000i / Champion 3400wi / 94 pounds
• 28"W x 32"D x 28"H: Honda EU3000iS / 108 pounds
• 34"W x 34"D x 32"H: Honda EG4000 & EG6500 / Yamaha EF4500i & EF6300i / 138 pounds
• 40"W x 36"D x 32"H: 6500 watt / 168 pounds
• 40"W x 32"D x 36"H: Yamaha EF5500d & EF7200d / 168 pounds
• 38"W x 40"D x 36"H: Honda EU7000iS / 182 pounds
• 38"W x 48"D x 36"H: Honda EB4000-EB5000 & EM4000S-EM6500S & EB6500 / 204 pounds
• 40"W x 36"D x 38"H: Yamaha EF12000D / 182 pounds
• 38"W x 62"D x 44"H: Honda EB10000 / 254 pounds

ATB Side Open Generator Storage Box Door & Slide Out Tray Dimensions:

• 24"W x 24"D x 22"H: Door: 20.5"W x 18.5"H / Tray: 15.5"W x 22"D
• 26"W x 28"D x 24"H: Door: 22.5"W x 20.5"H / Tray: 17.5"W x 26"D
• 20"W x 26"D x 24"H:  Door: 16.5"W x 20.5"H / Tray: 11.5"W x 24"D
• 26"W x 24"D x 24"H:  Door: 22.5"W x 20.5"H / Tray: 17.5"W x 22"D
• 30"W x 24"D x 24"H:  Door: 26.5"W x 20.5"H / Tray: 21.5"W x 22"D
• 36"W x 24"D x 24"H:  Door: 32.5"W x 20.5"H / Tray: 27.5"W x 22"D
• 28"W x 30"D x 26"H:  Door: 24.5"W x 22.5"H / Tray: 19.5"W x 28"D
• 28"W x 32"D x 28"H:  Door: 24.5"W x 24.5"H / Tray: 19.5"W x 30"D
• 34"W x 34"D x 32"H:  Door: 30.5"W x 28.5"H / Tray: 25.5"W x 32"D
• 40"W x 36"D x 32"H:  Door: 36.5"W x 28.5"H / Tray: 31.5"W x 34"D
• 40"W x 32"D x 36"H:  Door: 36.5"W x 32.5"H / Tray: 31.5"W x 30"D
• 38"W x 40"D x 36"H:  Door: 34.5"W x 32.5"H / Tray: 29.5"W x 38"D
• 38"W x 48"D x 36"H:  Door: 34.5"W x 32.5"H / Tray: 29.5"W x 46"D
• 40"W x 36"D x 38"H:  Door: 36.5"W x 34.5"H / Tray: 31.5"W x 34"D
• 38"W x 62"D x 44"H:  Door: 34.5"W x 40.5"H / Tray: 29.5"W x 60"D

*Door opening height is measured from the slide out tray to the top of the storage box.

ATB Generator Box Side Open Spec Sheets:

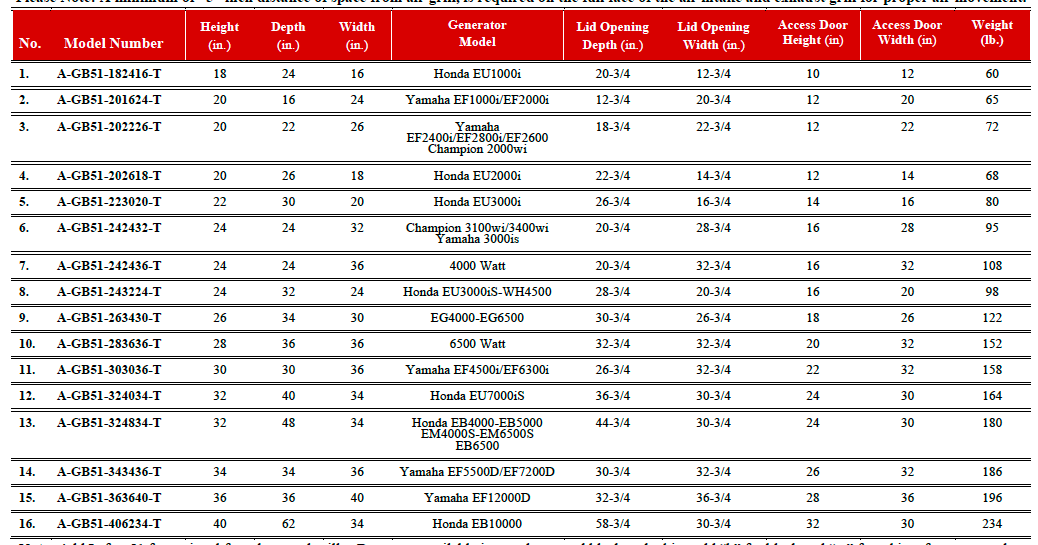

• ATB Generator Box Side Open Measurement Specs

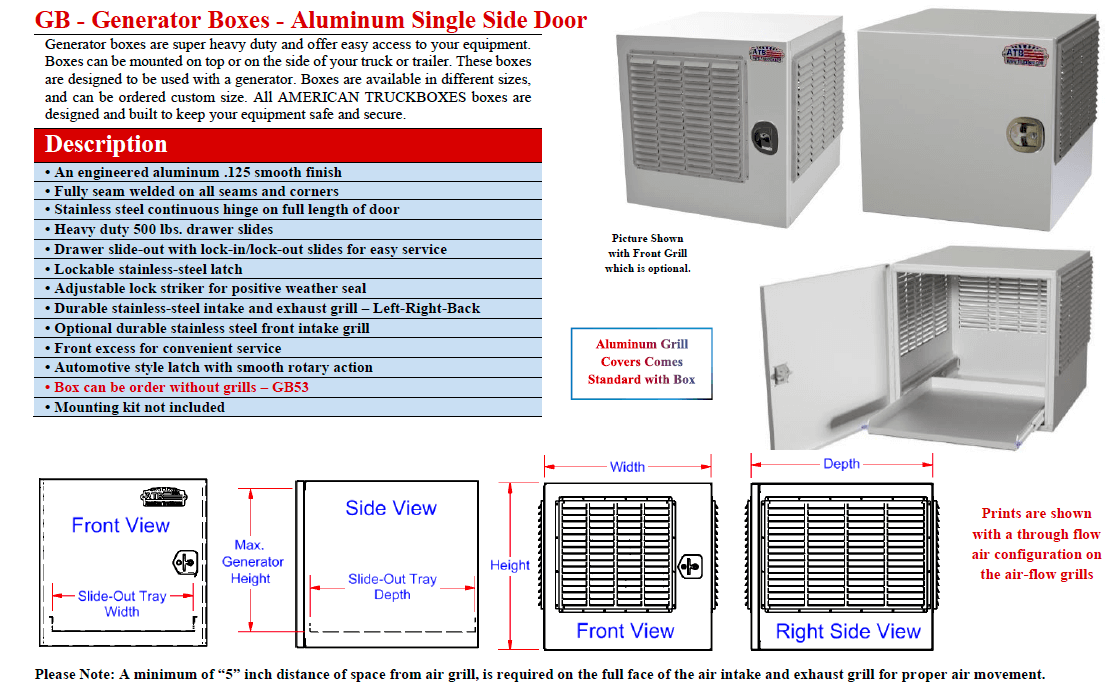

• ATB Generator Box Side Open Available Sizes & Dimensions
