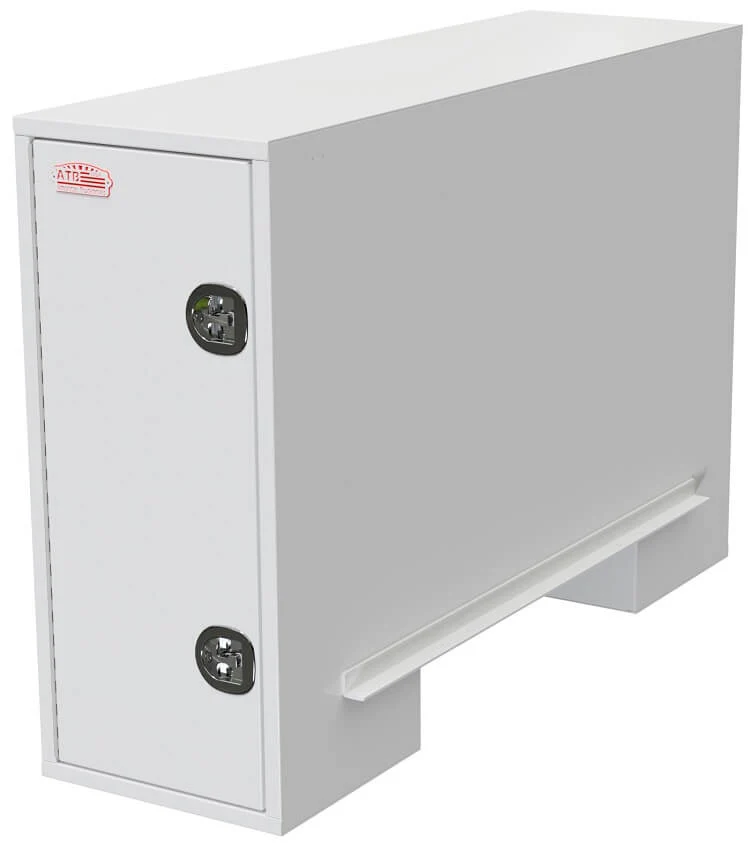

ATB Backpack Truck Toolbox

ATB Backpack Truck Tool boxes are available in aluminum or steel and are designed to be mounted behind the truck cab on the truck frame.

Backpack toolboxes are ideal for storing equipment, tools and personal gear.

Choose from the following Backpack Toolbox designs:

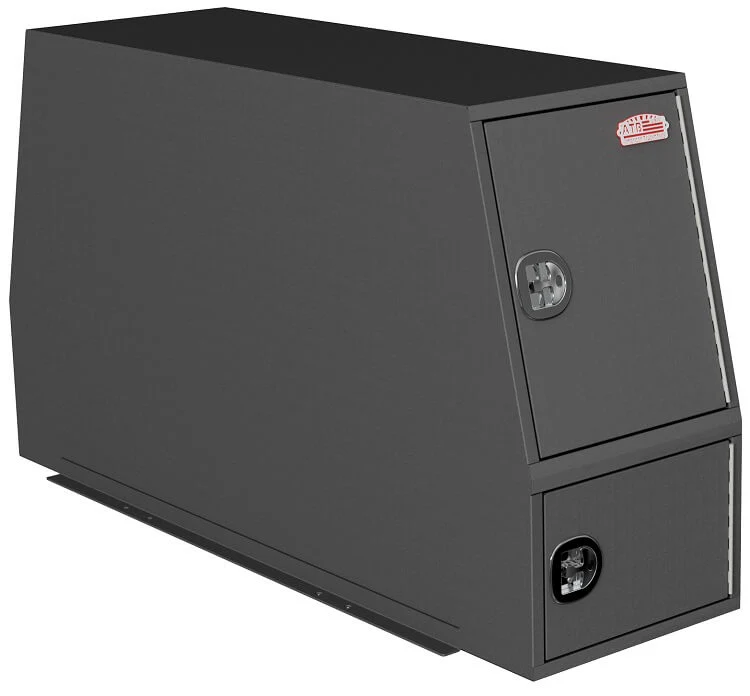

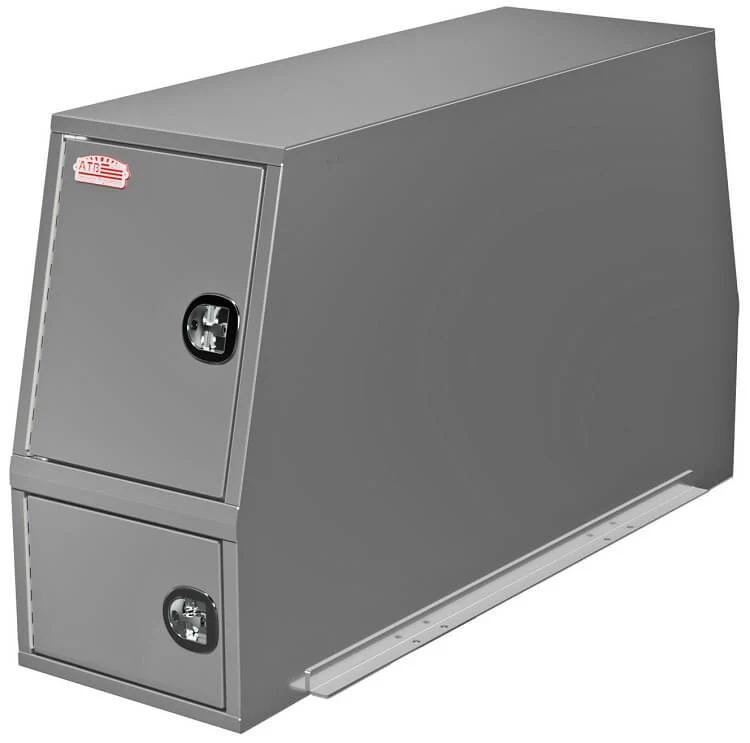

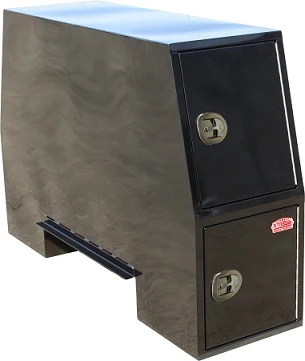

• Slanted with offset floor.
• Slanted with flat floor.

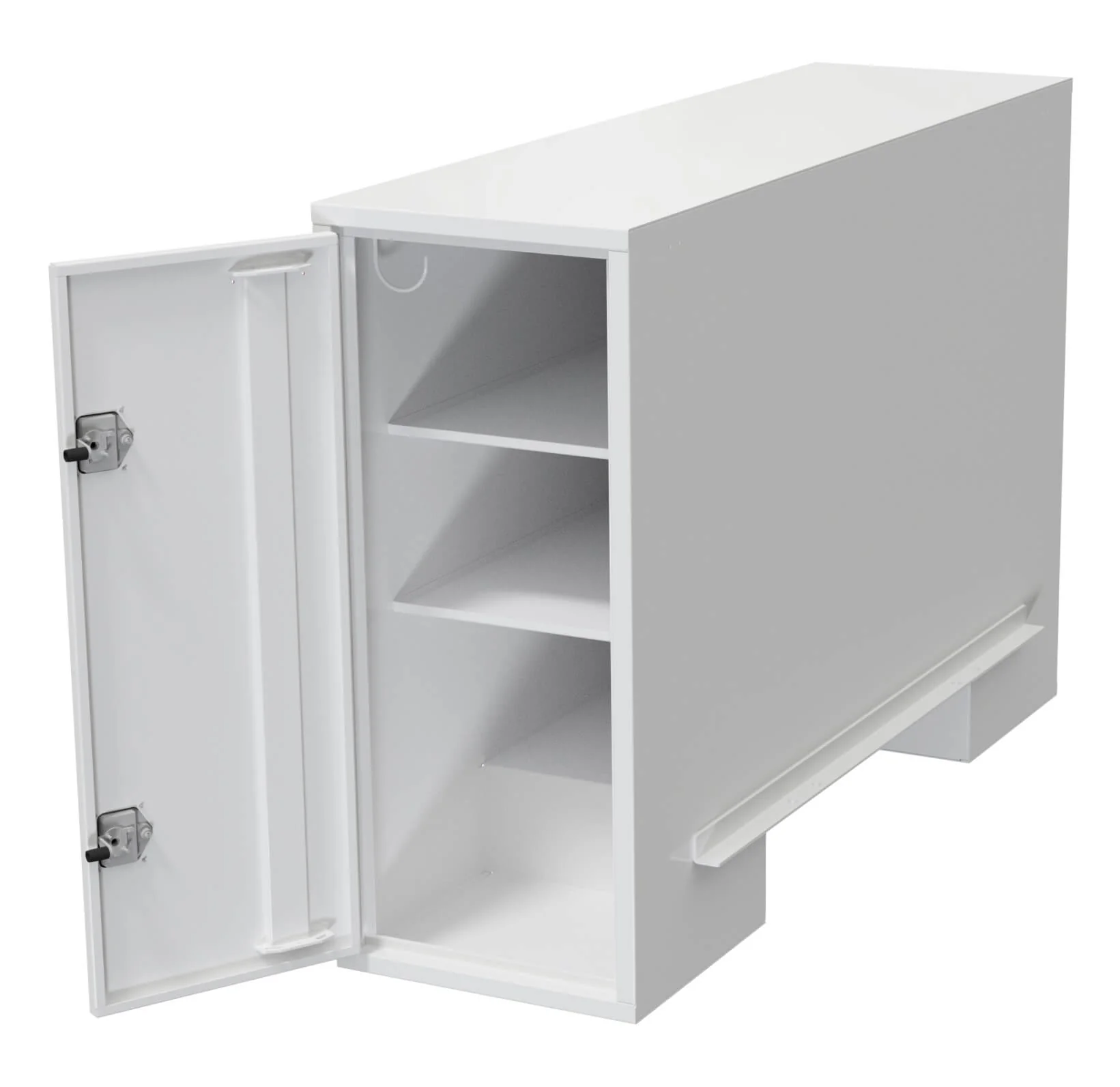

• Straight with offset floor.

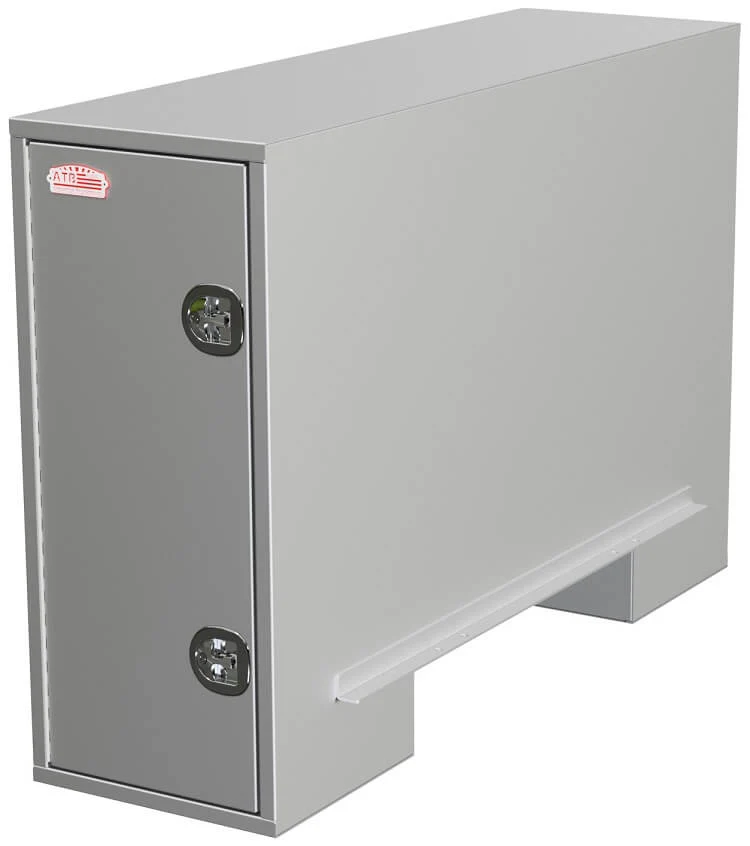

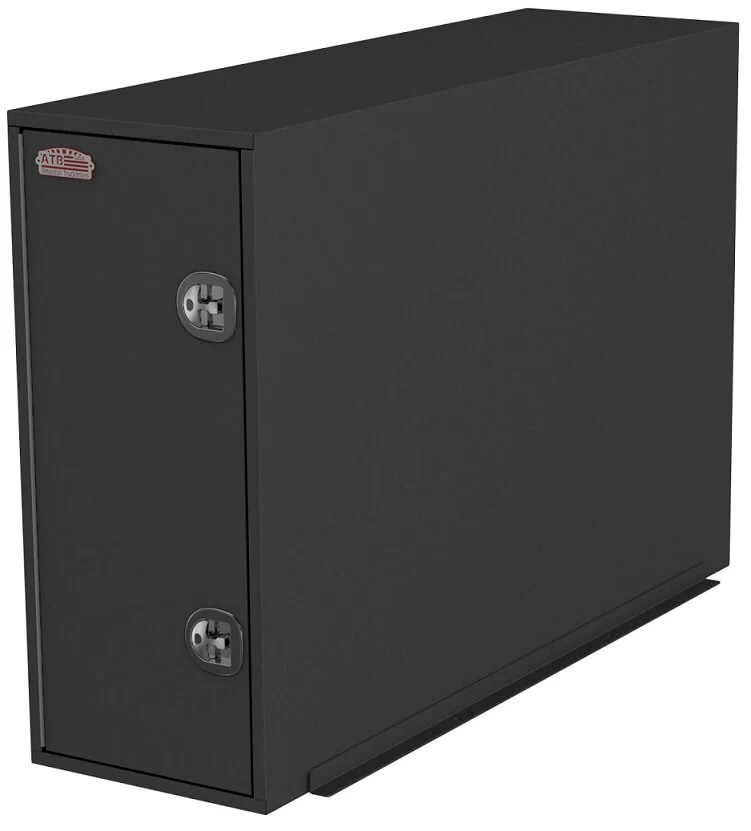

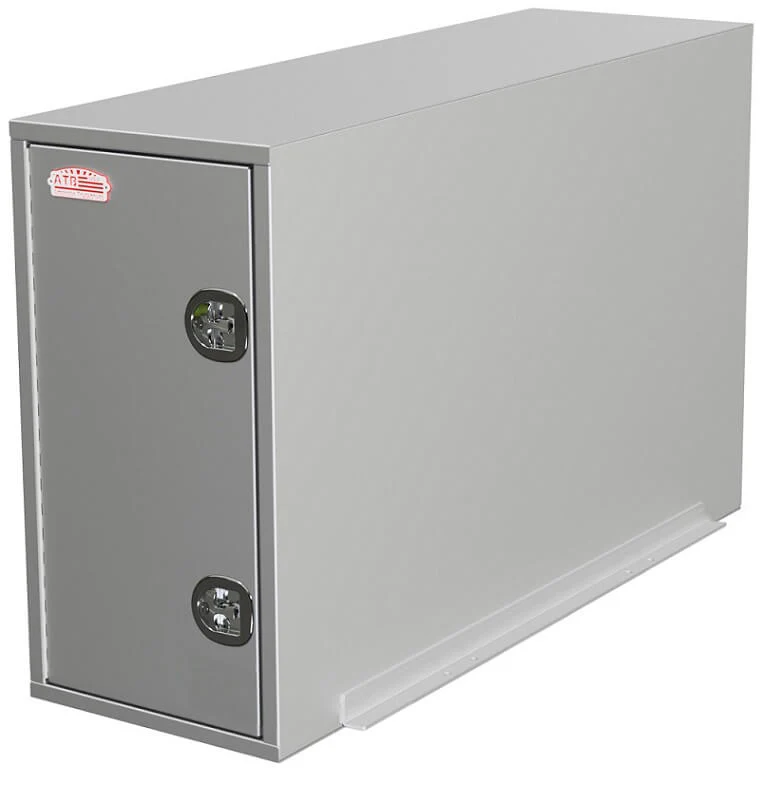

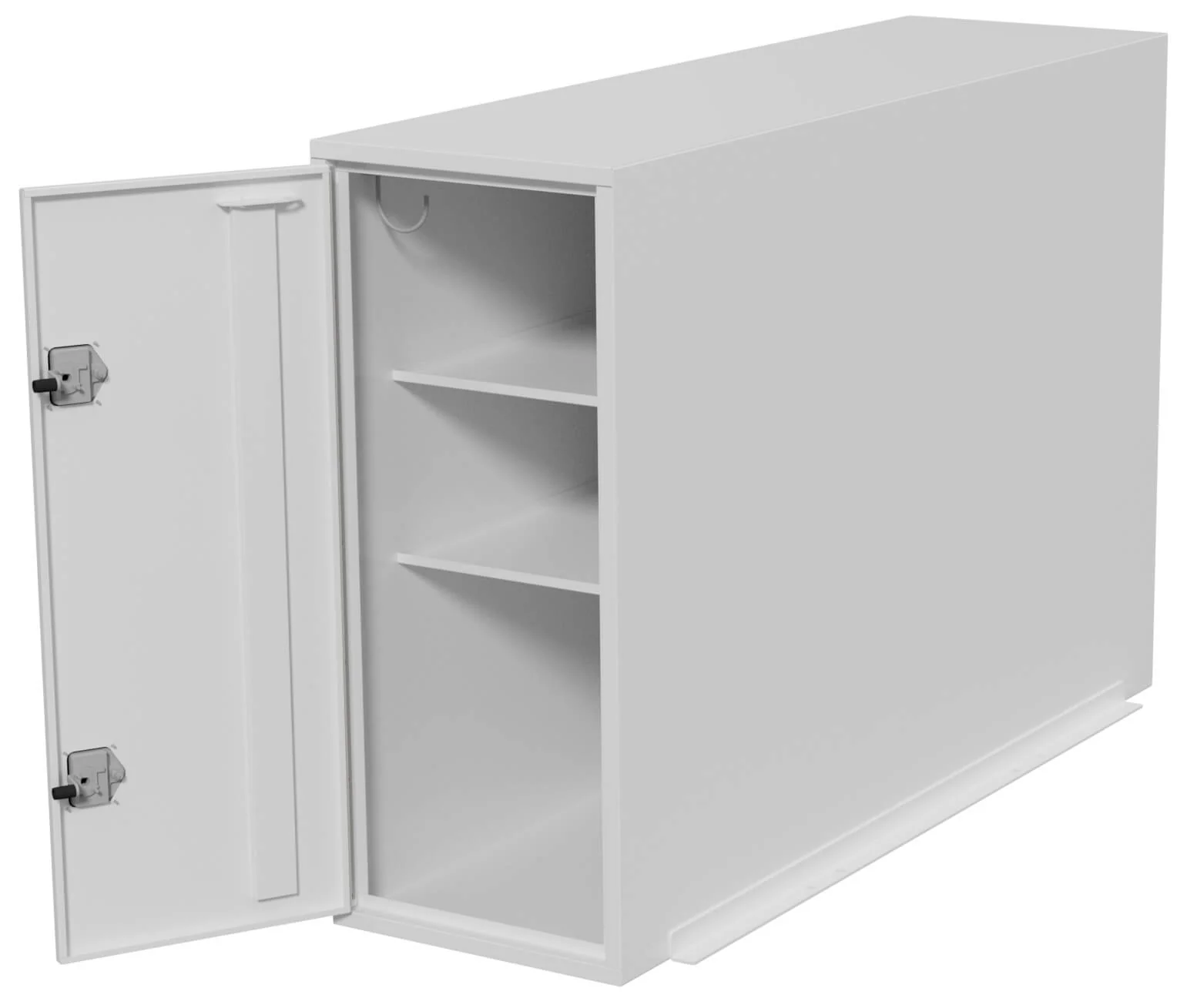

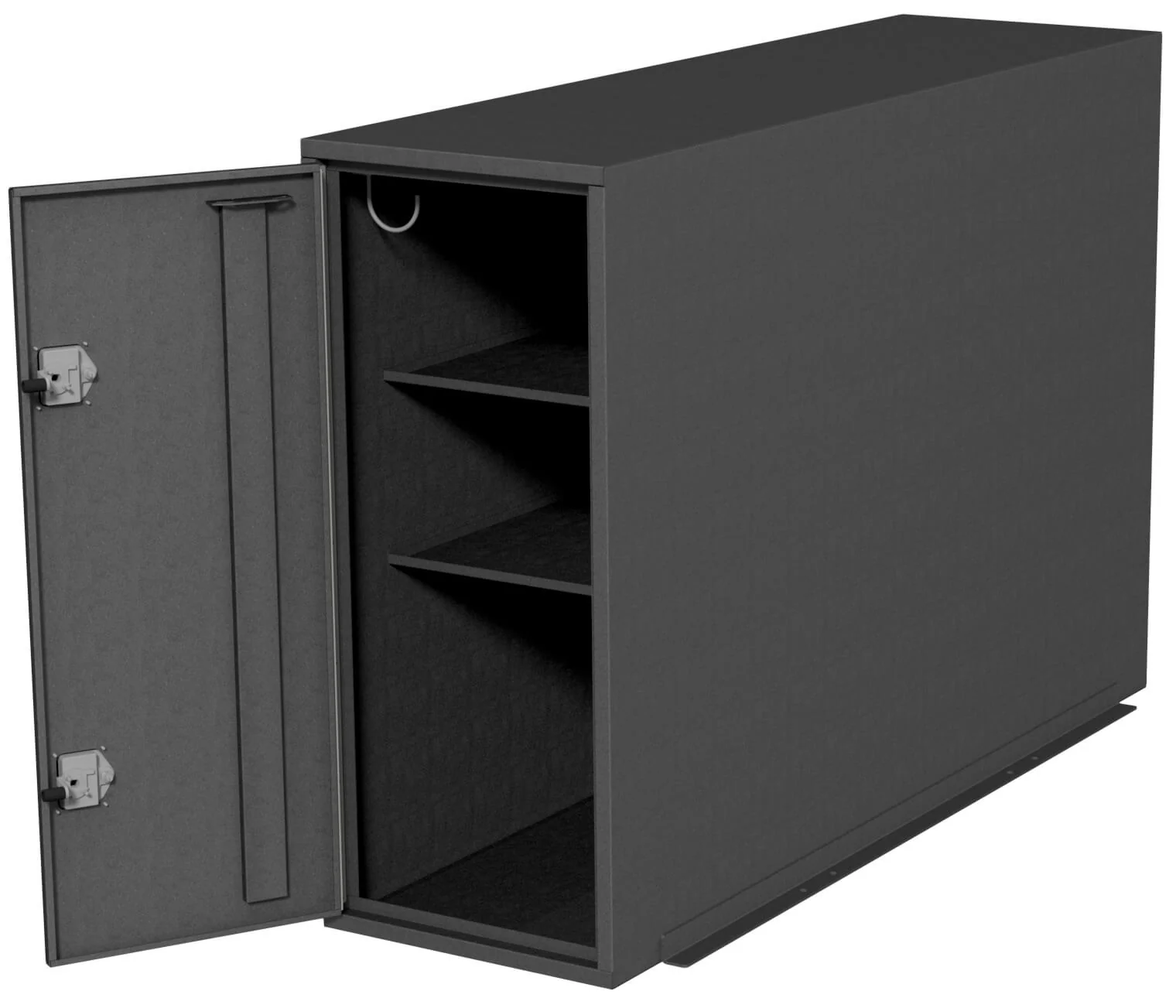

• Straight with flat floor.

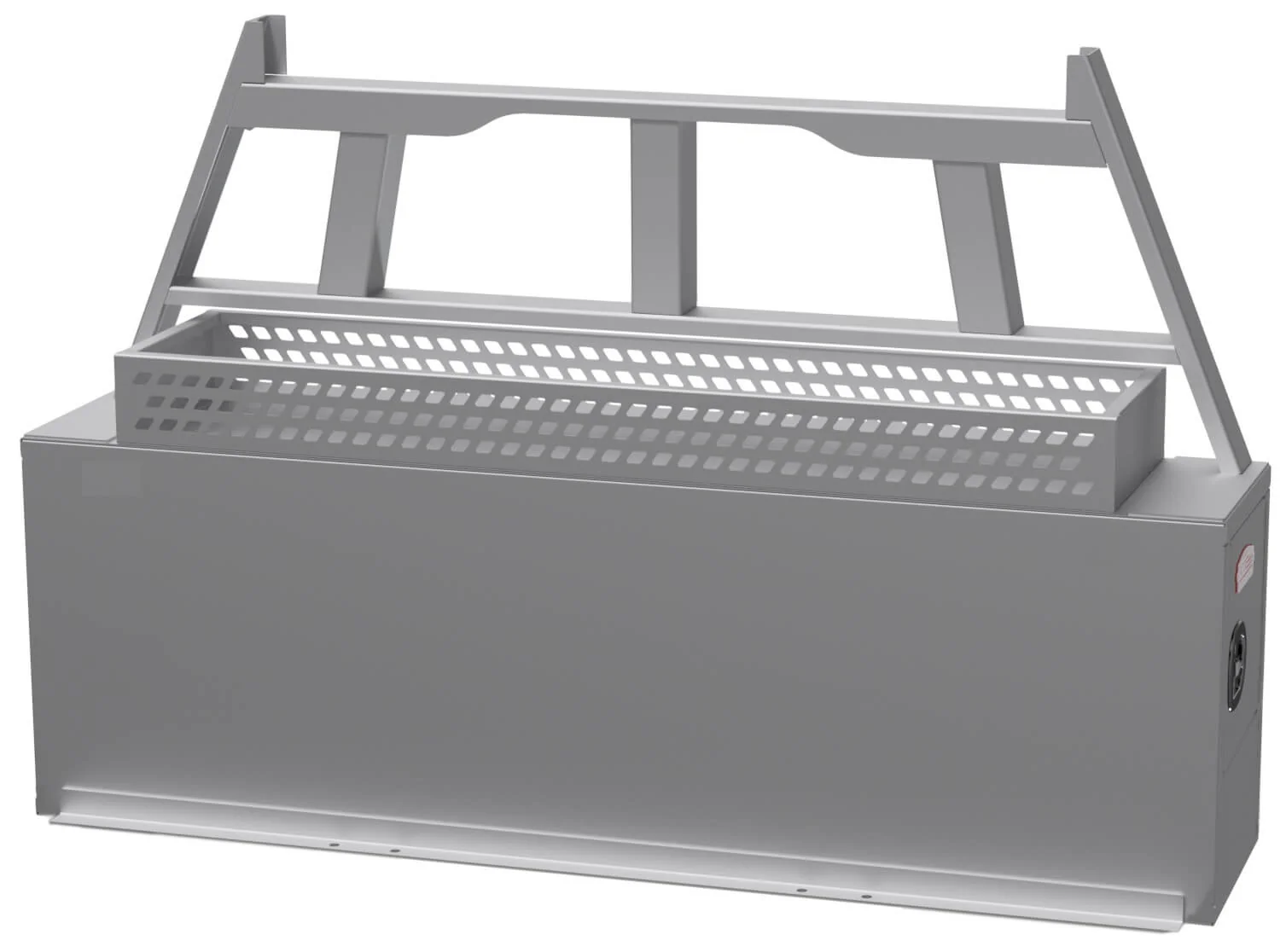

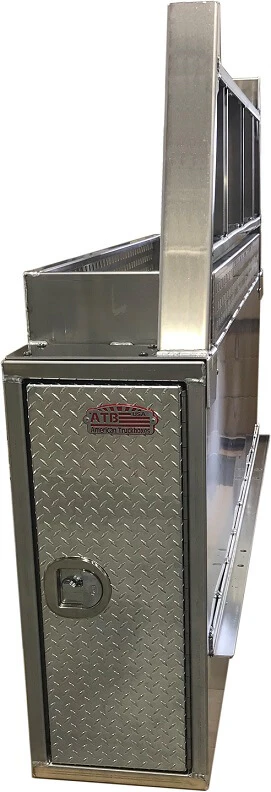

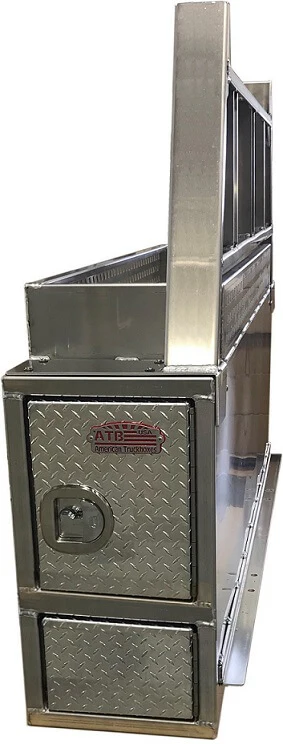

• Straight with offset floor & headache rack.

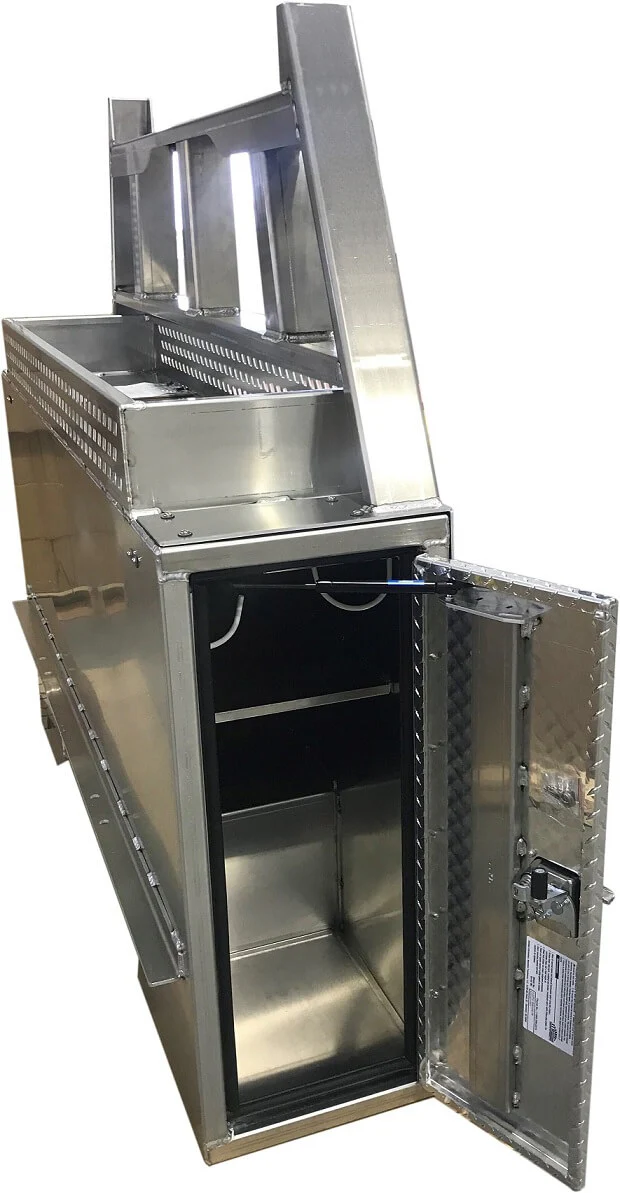

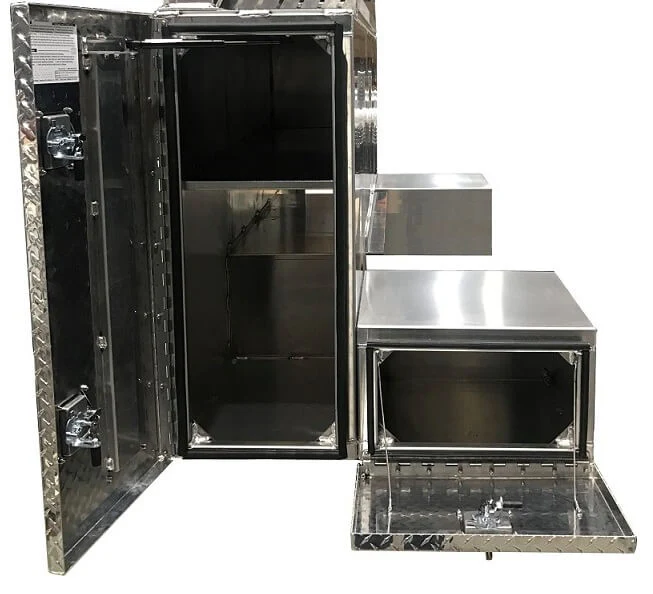

• Straight with offset floor, headache rack & side boxes.
• Straight with flat floor & headache rack.
• Straight with flat floor, headache rack & side boxes.

ATB Backpack Truck Toolbox Features:

• Choose aluminum or steel design.
• Steel design available with powder coat black (standard) or white (optional) color.
• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of lid.

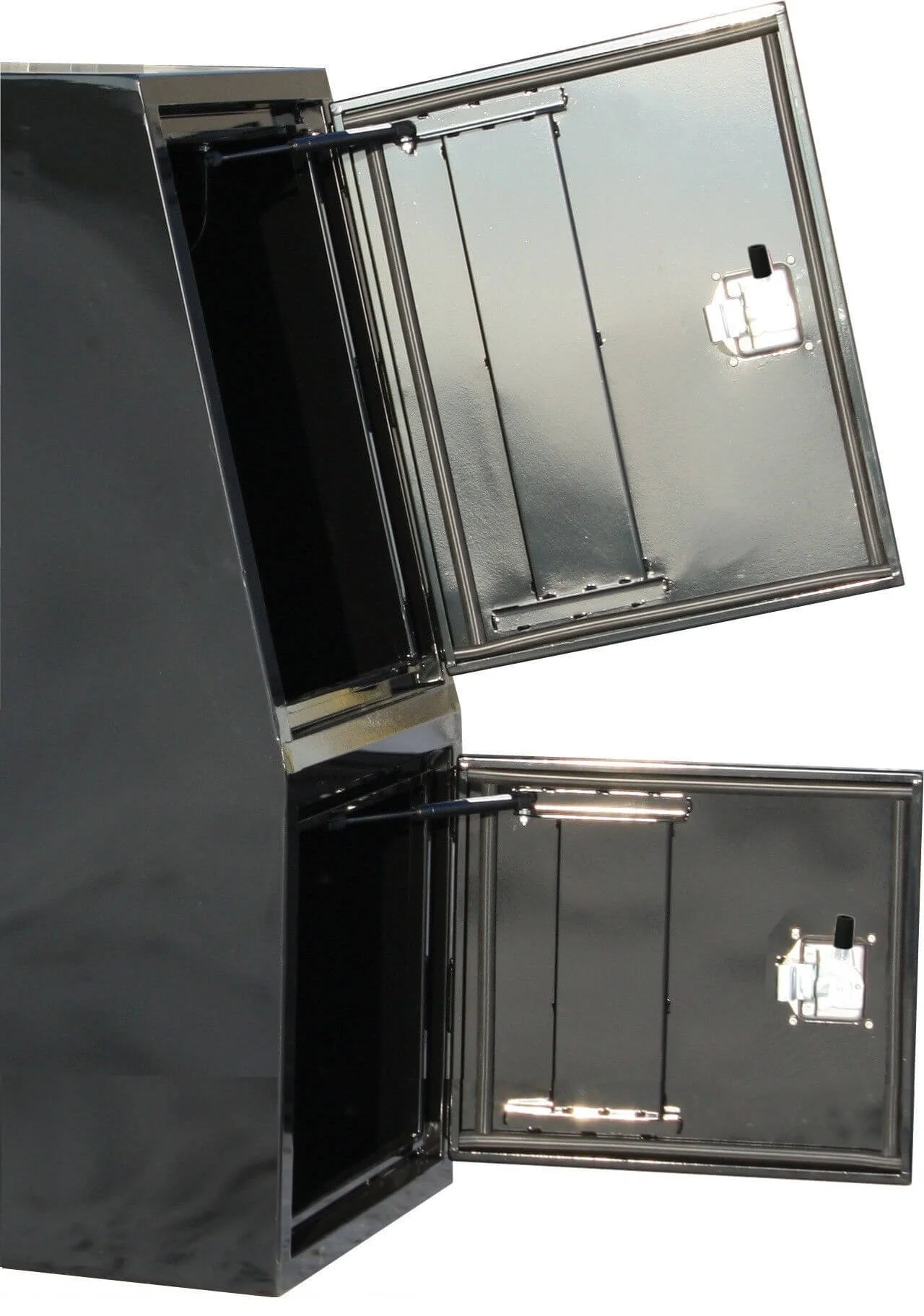

• Channel braced reinforced doors with gas springs.
• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Built-in frame mounting rails for easy installation.
• Rain gutter and automotive type weather seal.
• Stationary shelves and two J-hooks on either side.
• Zinc epoxy primer with MR powder baked topcoat finish.
• Fully concealed rain gutter, with automotive type weather seal.
• Drawers with inside adjustable compartments.
• Mounting kit available as optional add-on accessory.

ATB Backpack Truck Toolbox Sizes & Dimensions:

Angled with Offset Floor Aluminum

82"L x 24"W x 55"H: 10G Aluminum / Double Side Doors / 300 pounds

82"L x 24"W x 62"H: 10G Aluminum / Double Side Doors / 340 pounds

82"L x 24"W x 65"H: 10G Aluminum / Double Side Doors / 356 pounds

82"L x 24"W x 70"H: 10G Aluminum / Double Side Doors / 385 pounds

85"L x 24"W x 55"H: 10G Aluminum / Double Side Doors / 310 pounds

92"L x 24"W x 55"H: 10G Aluminum / Double Side Doors / 335 pounds

92"L x 24"W x 58"H: 10G Aluminum / Double Side Doors / 354 pounds

Angled with Offset Floor Steel

82"L x 24"W x 55"H: 14G Steel / Double Side Doors / 489 pounds

82"L x 24"W x 62"H: 14G/12G Steel / Double Side Doors / 555 pounds

82"L x 24"W x 65"H: 14G/12G Steel / Double Side Doors / 580 pounds

82"L x 24"W x 70"H: 14G/12G Steel / Double Side Doors / 625 pounds

85"L x 24"W x 55"H: 14G/12G Steel / Double Side Doors / 508 pounds

92"L x 24"W x 55"H: 14G/12G Steel / Double Side Doors / 550 pounds

92"L x 24"W x 58"H: 14G/12G Steel / Double Side Doors / 580 pounds

Angled with Flat Floor Aluminum

82"L x 24"W x 46"H: .125 Aluminum / Double Side Doors / 270 pounds

82"L x 24"W x 59"H: .125 Aluminum / Double Side Doors / 352 pounds

Angled with Flat Floor Steel

82"L x 24"W x 46"H: 14G Steel / Double Side Doors / 440 pounds

82"L x 24"W x 59"H: 14G Steel / Double Side Doors / 520 pounds

Offset Floor Aluminum

82"L x 24"W x 55"H: 10G Aluminum / Single Side Door / 298 pounds

85"L x 24"W x 57"H: 10G Aluminum / Single Side Door / 545 pounds

95"L x 24"W x 57"H: 10G Aluminum / Single Side Door / 645 pounds

95"L x 24"W x 62"H: 10G Aluminum / Single Side Door / 675 pounds

Offset Floor Steel

82"L x 24"W x 55"H: 14G Steel / Single Side Door / 528 pounds

85"L x 24"W x 57"H: 14G Steel / Single Side Door / 545 pounds

95"L x 24"W x 57"H: 14G/12G Steel / Single Side Door / 645 pounds

95"L x 24"W x 62"H: 14G/12G Steel / Single Side Door / 675 pounds

Flat Floor Aluminum

82"L x 24"W x 46"H: 10G Aluminum / Single Side Door / 262 pounds

95"L x 24"W x 46"H: 10G Aluminum / Single Side Door / 358 pounds

96"L x 24"W x 48"H: 10G Aluminum / Single Side Door / 398 pounds

Flat Floor Steel

82"L x 24"W x 46"H: 14G Steel / Single Side Door / 458 pounds

95"L x 24"W x 46"H: 14G Steel / Single Side Door / 510 pounds

96"L x 24"W x 48"H: 14G Steel / Single Side Door / 515 pounds

Offset Floor Headache Rack Aluminum

80"L x 16"W x 38"H: 10G Aluminum / Single Side Door / 260 pounds

90"L x 16"W x 38"H: 10G Aluminum / Single Side Door / 295 pounds

Offset Floor Headache Rack with Side Boxes Aluminum

80"L x 16"W x 38"H: 10G Aluminum / Single Side Door / 294 pounds

90"L x 16"W x 38"H: 10G Aluminum / Single Side Door / 336 pounds

Flat Floor Headache Rack Aluminum

80"L x 16"W x 26"H: 10G Aluminum / Single Side Door / 312 pounds

90"L x 16"W x 26"H: 10G Aluminum / Single Side Door / 352 pounds

Flat Floor Headache Rack with Side Boxes Aluminum

80"L x 16"W x 26"H: 10G Aluminum / Single Side Door / 337 pounds

90"L x 16"W x 26"H: 10G Aluminum / Single Side Door / 390 pounds
