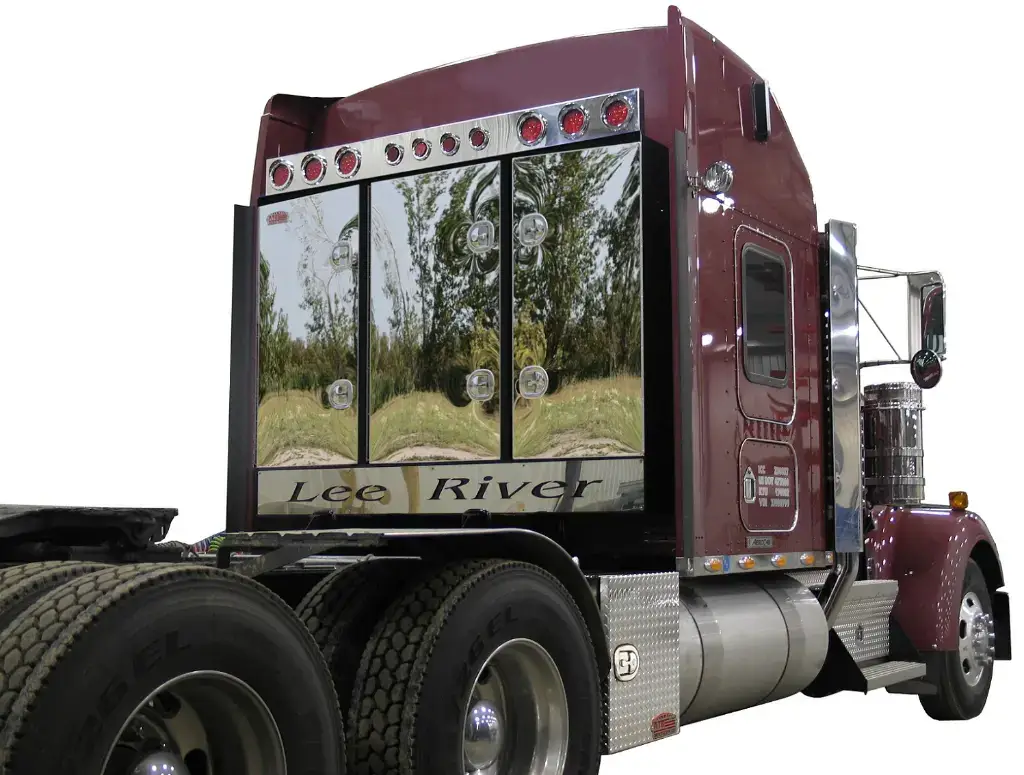

ATB Enclosed Semi Headache Rack

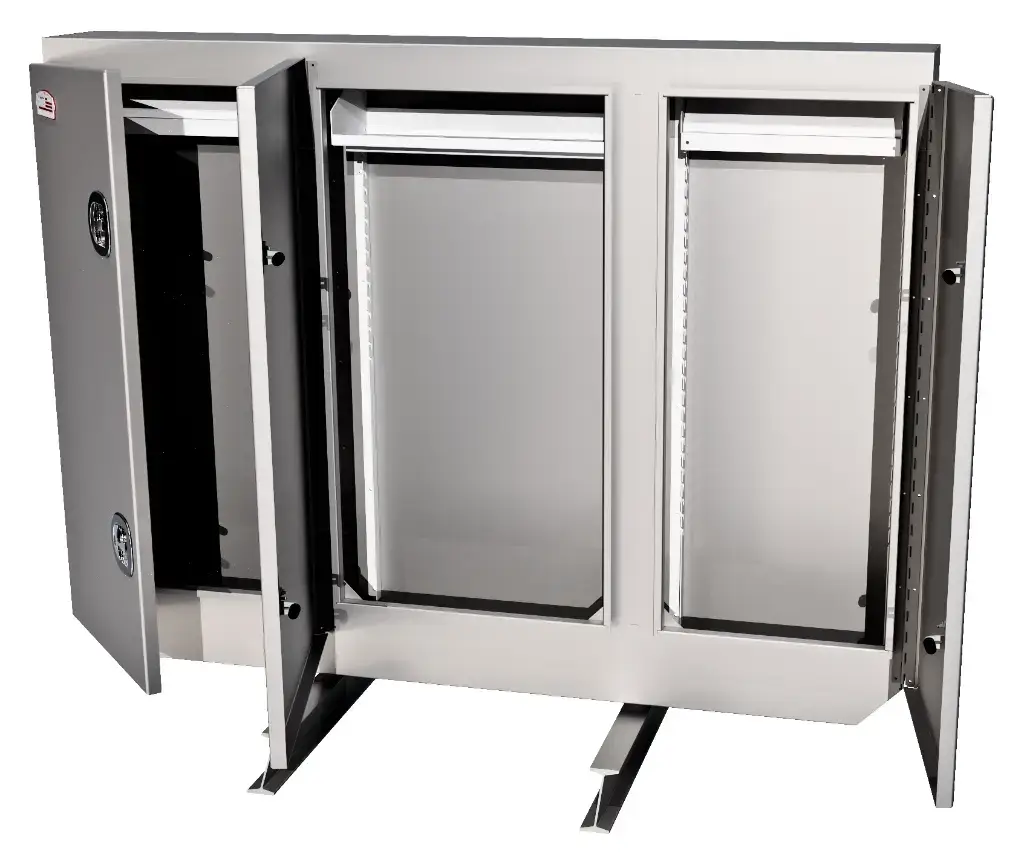

The ATB enclosed semi truck headache rack is available in a 3 door design with optional top toolboxes for additional storage.

Choose a smooth aluminum or stainless steel door design.

The ATB headache racks can be mounted with SX-beam or flush mount on top of the frame.

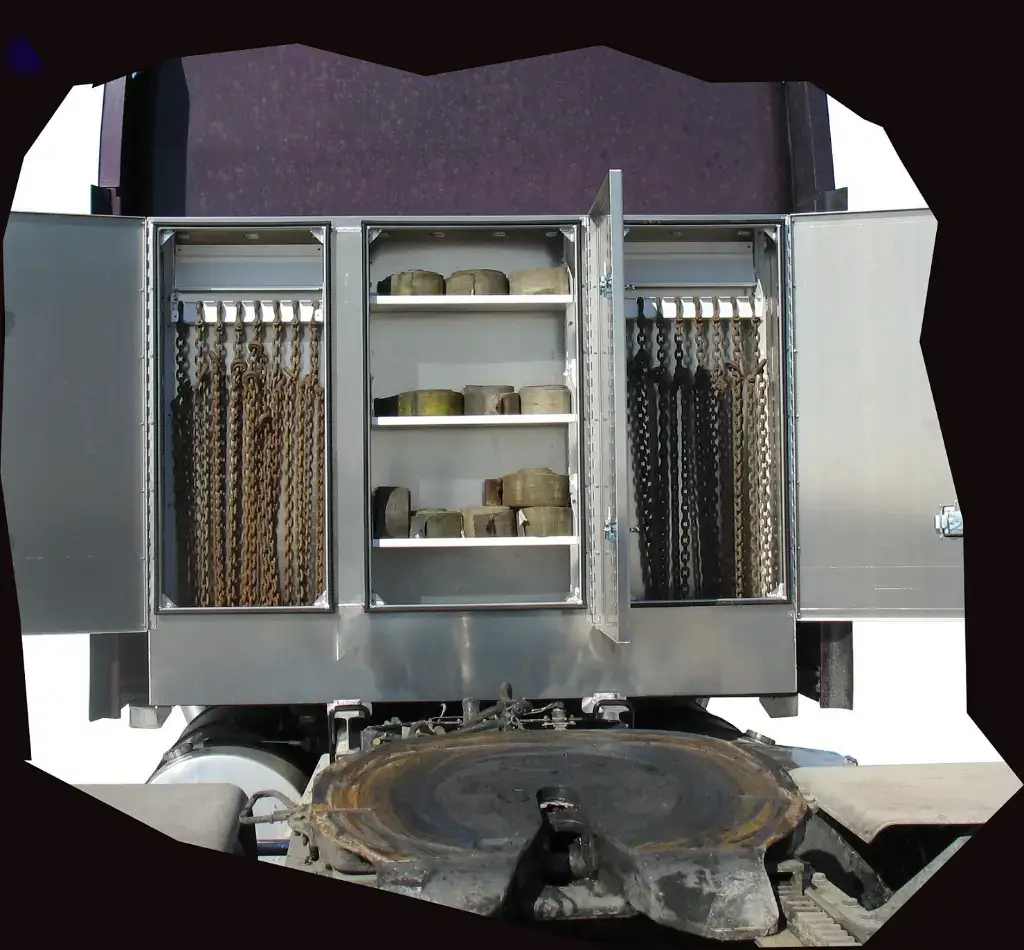

The headache racks with enclosed storage are ideal for storing chains, binders, straps, tarps, tools or personal gear.

Note: the pictures for the toolbox option only include the stainless steel version.

Optional Accessories:

• Black or White powder coated body (does not include doors).
• Top mounted light bar.
• U-Bolt mounting kit.

Note: Mounting is not included, but is available as an optional accessory.

ATB Enclosed Semi Truck Headache Rack Features:

• Choose .125 inch smooth aluminum or stainless steel doors.

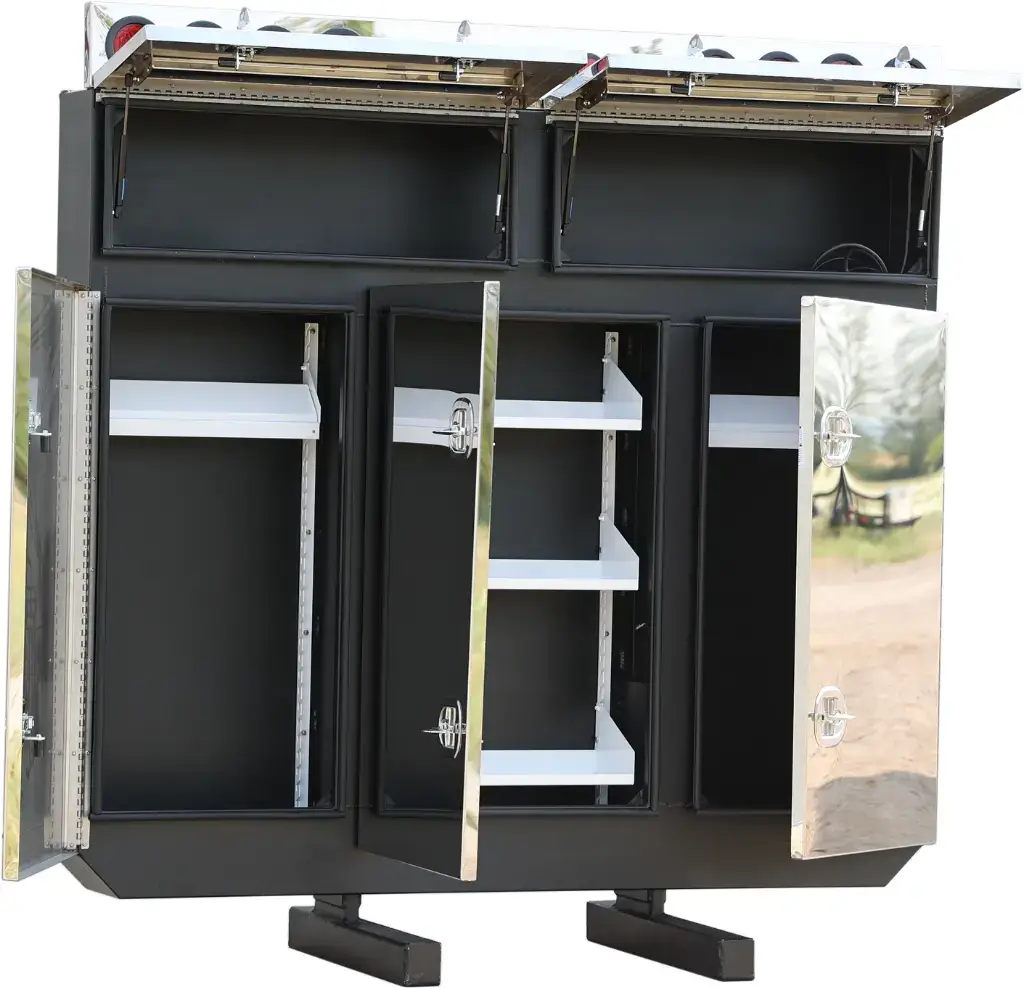

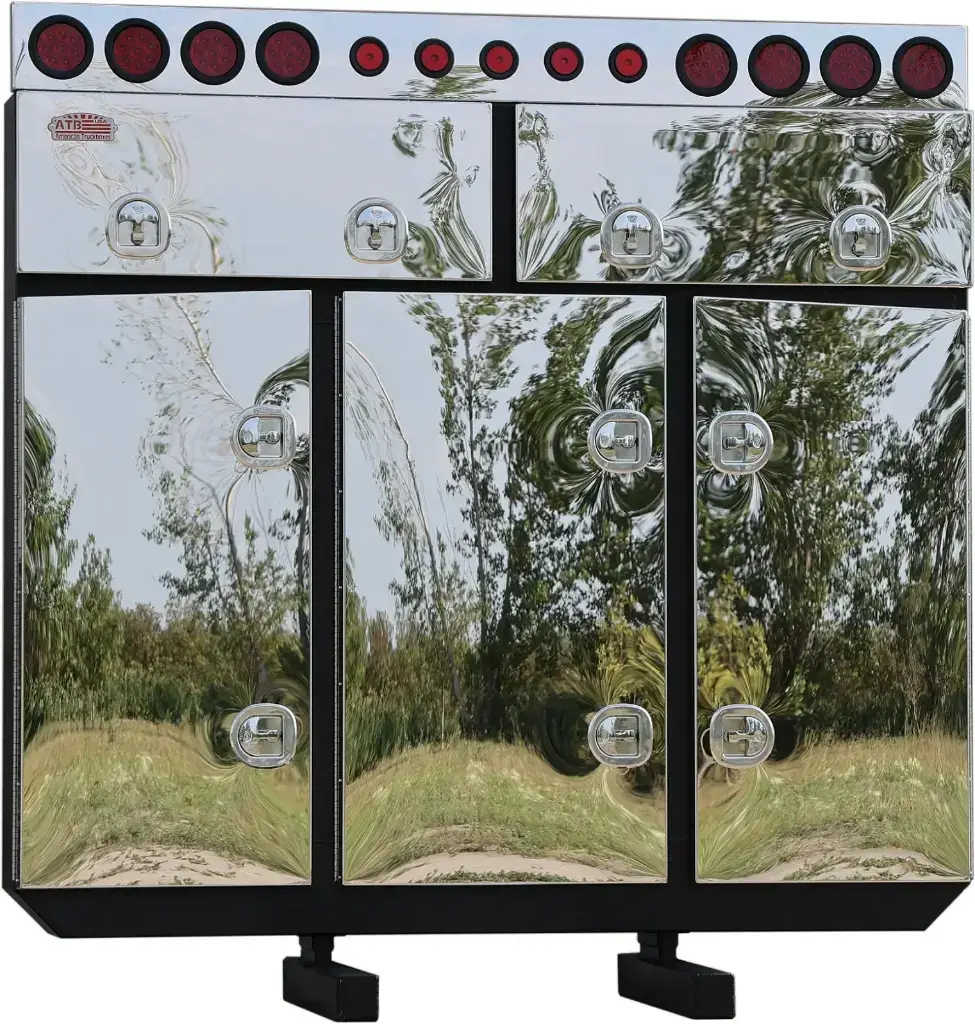

• Choose standard 3 door or 3 door with top mounted tool boxes.
• Fully seam welded on all seams and corners.
• Stainless steel continuous hinge on full length of door.
• Fully concealed rain gutter with automotive weather seal.

• Lockable SS Dolphin Tail HD adjustable T-Handle latch.
• Corners are gusseted for additional strength and durability.
• Front and rear plate gussets on base mounting.
• SX-Beam or optional flush mount system.
• Adjustable shelves and chain hangers.

ATB Enclosed Semi Truck Headache Rack Sizes & Dimensions:

3 Door Aluminum

• 76"L x 12"W x 68"H: 278 pounds
• 80"L x 12"W x 68"H: 292 pounds
• 80"L x 14"W x 68"H: 306 pounds
• 84"L x 14"W x 68"H: 326 pounds

3 Door Aluminum with Top Mount Toolboxes

• 76"L x 14"W x 84"H: 378 pounds
• 80"L x 14"W x 84"H: 384 pounds
• 84"L x 14"W x 84"H: 397 pounds
• 84"L x 16"W x 84"H: 417 pounds
• 84"L x 22"W x 84"H: 472 pounds

3 Door Stainless Steel

• 76"L x 12"W x 68"H: 298 pounds
• 80"L x 12"W x 68"H: 314 pounds
• 80"L x 14"W x 68"H: 330 pounds
• 84"L x 14"W x 68"H: 346 pounds

3 Door Stainless Steel with Top Mount Toolboxes

• 76"L x 14"W x 84"H: 390 pounds
• 80"L x 14"W x 84"H: 405 pounds
• 84"L x 14"W x 84"H: 420 pounds
• 84"L x 16"W x 84"H: 440 pounds
• 84"L x 22"W x 84"H: 488 pounds

Other Tool Box Options:

• For more options see other ATB Headache Rack options or all enclosed headache racks.
