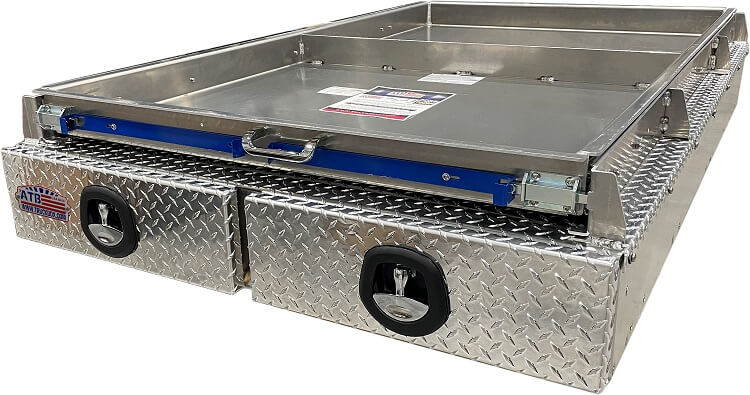

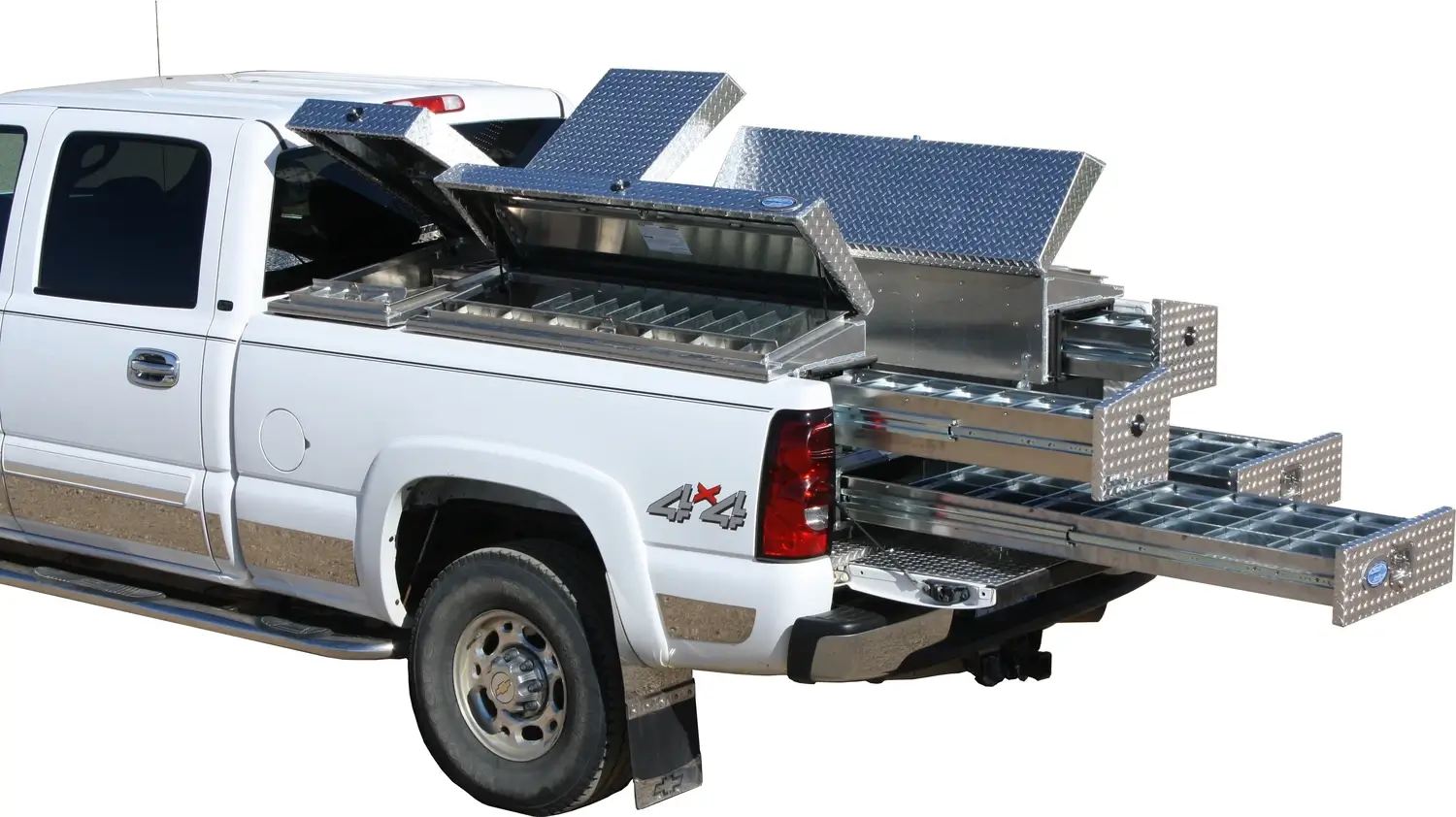

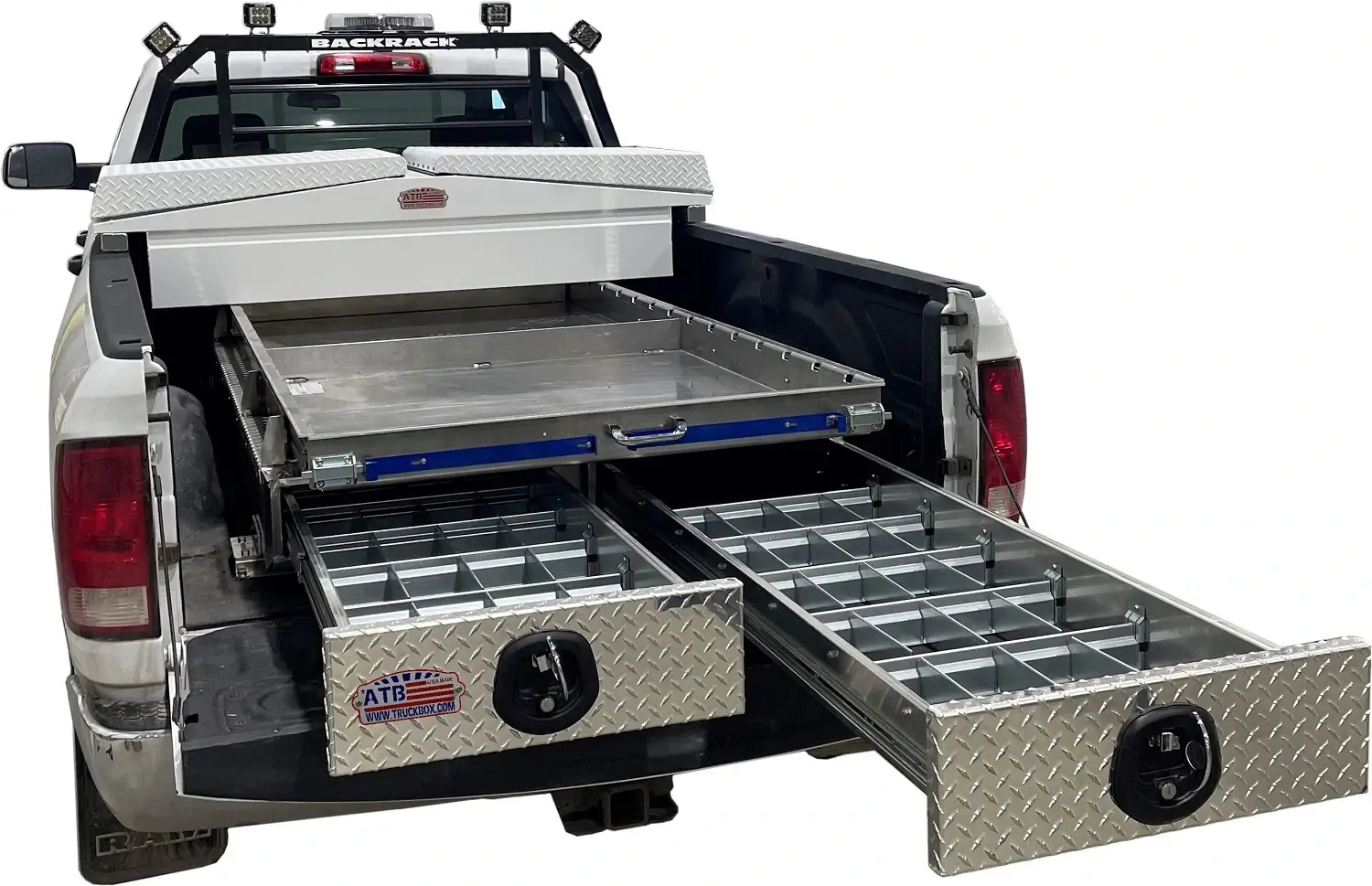

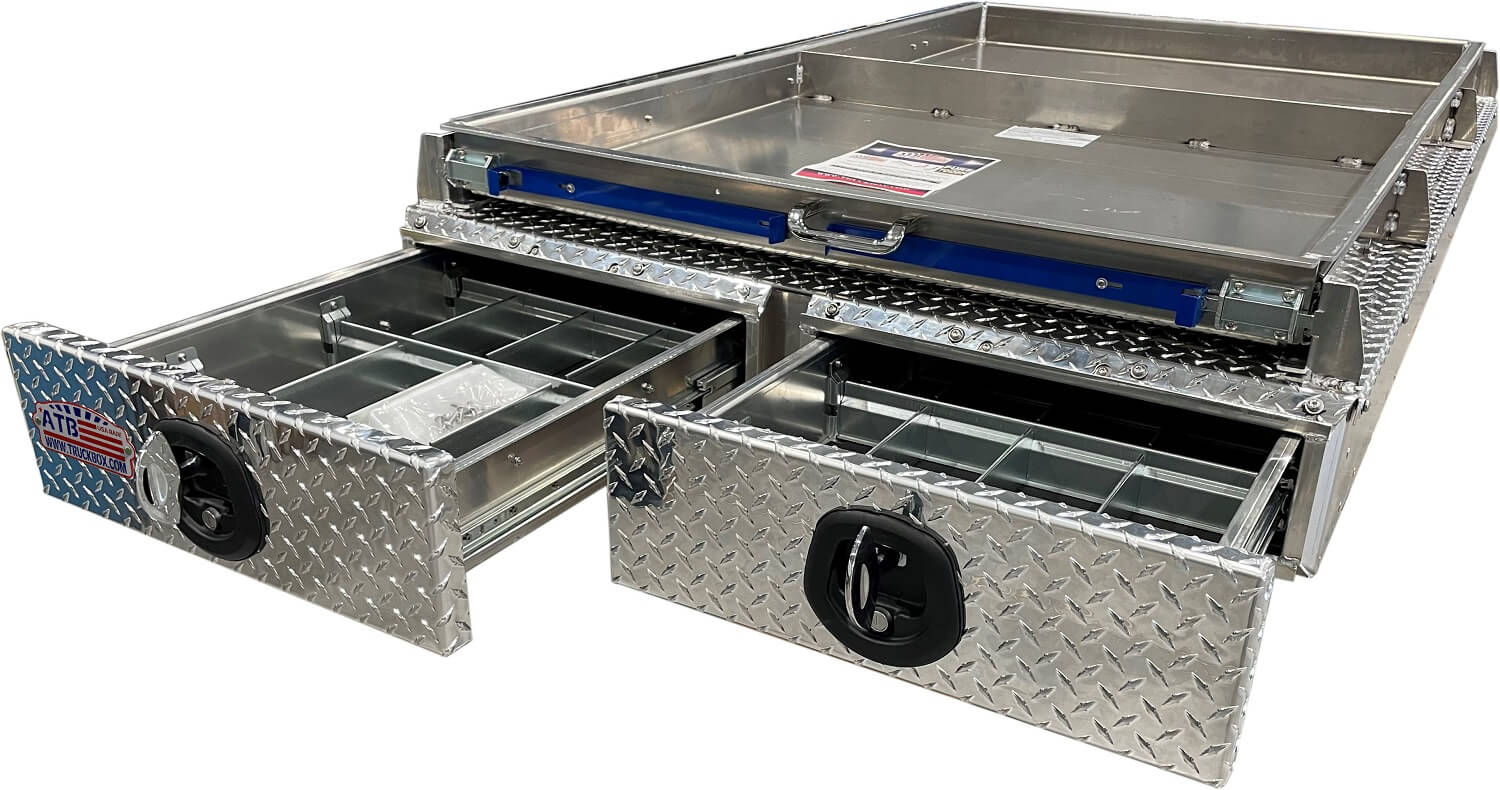

ATB Truck Bed Slide Out Double Drawer Storage Box

ATB truck bed slide out heavy duty double drawer storage tool boxes provide easy and efficient storage of your equipment and tools. These boxes are available in aluminum and can be mounted in trucks, trailers and flatbeds.

ATB Truck Bed Slide Out Double Drawer Storage Box Features:

• .125" smooth & .10" tread plate aluminum design.
• Fully seam welded on all seams and corners.

• Channel braced reinforced top and bottom.
• Lockable SS Dolphin Tail HD adjustable T-handle latch.
• Automotive type weather seal.
• Heavy duty drawer slides with smooth rolling action.
• Drawer dividers removable for organization.

• Mounting kit included.

ATB Truck Bed Slide Out Double Drawer Storage Box Sizes & Dimensions:

Aluminum

• 28"L x 48"W x 8"H: .125" / .1" TP / Double Drawer / 168 pounds
• 40"L x 48"W x 8"H: .125" / .1" TP / Double Drawer / 238 pounds
• 52"L x 48"W x 8"H: .125" / .1" TP / Double Drawer / 310 pounds
• 52"L x 48"W x 12"H: .125" / .1" TP / Double Drawer / 354 pounds
• 64"L x 48"W x 8"H: .125" / .1" TP / Double Drawer / 385 pounds
• 64"L x 48"W x 12"H: .125" / .1" TP / Double Drawer / 435 pounds
• 76"L x 48"W x 8"H: .125" / .1" TP / Double Drawer / 425 pounds
• 76"L x 48"W x 12"H: .125" / .1" TP / Double Drawer / 476 pounds

Aluminum with Slide Out Tray

*Note: slide out tray adds 5 inches of height to the double drawer storage box listed above (total height increases to 13 or 17 inches with the 5 inch tray):

• 52"L x 48"W x 13"H: .125" / .1" TP / Double Drawer / 430 pounds
• 52"L x 48"W x 17"H: .125" / .1" TP / Double Drawer / 529 pounds
• 64"L x 48"W x 13"H: .125" / .1" TP / Double Drawer / 590 pounds
• 64"L x 48"W x 17"H: .125" / .1" TP / Double Drawer / 474 pounds
• 76"L x 48"W x 13"H: .125" / .1" TP / Double Drawer / 579 pounds
• 76"L x 48"W x 17"H: .125" / .1" TP / Double Drawer / 641 pounds

Additional Options:

• For more options see other ATB Toolboxes or all truck bed organizers.
