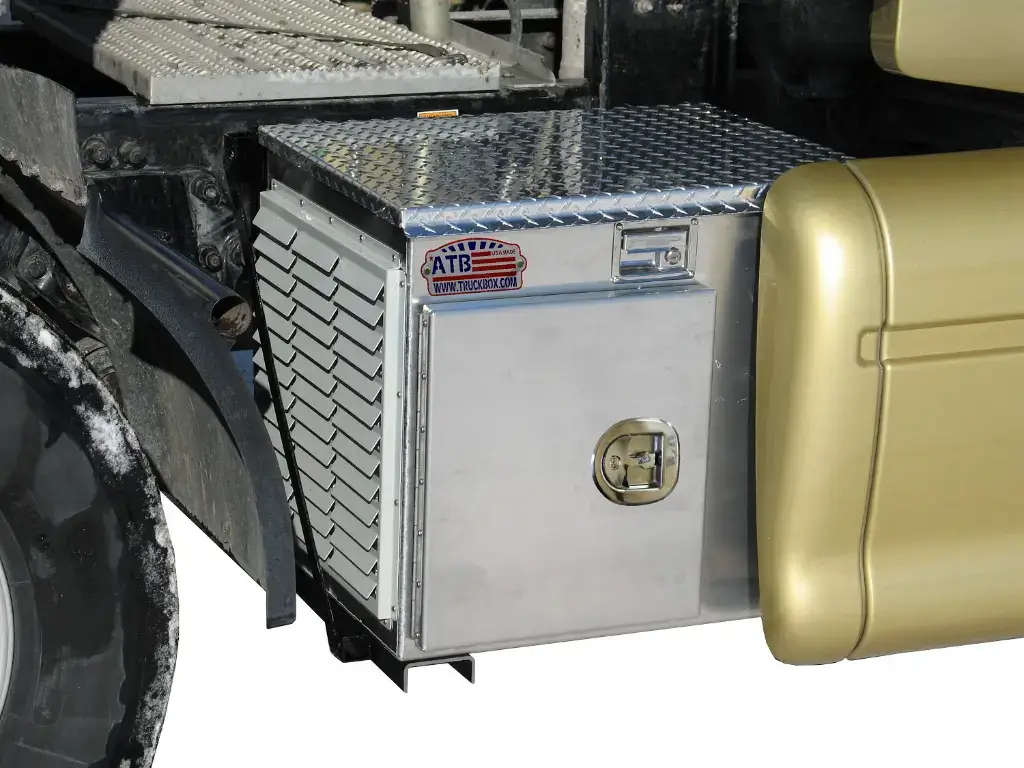

ATB Generator Storage Box Top Open

The ATB top open generator storage box can be mounted on top or on the side of your truck or trailer.

The aluminum generator storage box is available in multiple sizes and is designed to store a wide range of generator models.

*Additional product specs are available under the product spec sheets below.

ATB Generator Storage Box Features:

• Aluminum design.
• Fully seam welded on all seams and corners.

• stainless steel continuous hinge on full length of door.
• Channel braced reinforced lid.
• Lockable stainless steel latch.
• Adjustable lock striker for positive weather seal.
• Durable stainless steel intake and exhaust grill / left / right / back.

• Front access panel for convenient access.
• Optional Add On: front door grill.
• Optional Add On: mounting kit.

Note: A minimum of 5 inch distance of space from air grill is required on the full face of the air intake and exhaust grill for proper air movement.

ATB Top Open Generator Storage Box Dimensions / Generator Model / Weight:

• 16"W x 24"D x 18"H: Honda EU1000i / 60 pounds
• 24"W x 16"D x 20"H: Yamaha EF 1000i / EF2000i / 65 pounds
• 26"W x 22"D x 20"H: Yamaha EF2400i / EF2800i / EF2600 / Champion 2000wi  / 72 pounds
• 18"W x 26"D x 20"H: Honda EU2000i / 68 pounds
• 20"W x 30"D x 22"H: Honda EU2000i / 80 pounds
• 32"W x 24"D x 24"H: Champion 3100wi / 3400wi / Yamaha 3000is / 95 pounds
• 36"W x 24"D x 24"H: 4000 Watt / 108 pounds
• 24"W x 32"D x 24"H: Honda EU30000iS-WH4500 / 98 pounds
• 30"W x 34"D x 26"H: EG4000-EG6500 / 122 pounds
• 36"W x 36"D x 28"H: 6500 Watt / 152 pounds
• 36"W x 30"D x 20"H: Yamaha EF4500i / EF6300i / 158 pounds
• 34"W x 40"D x 32"H: Honda EU7000iS / 164 pounds
• 34"W x 48"D x 32"H: Honda EB4000 / EB5000 / EM4000S / EM6500S / EB6500 / 180 pounds
• 36"W x 34"D x 34"H: Yamaha EF5500D / EF7200D / 186 pounds
• 40"W x 36"D x 26"H: Yamaha EF12000D / 196 pounds
• 34"W x 62"D x 40"H: Honda EB10000 / 234 pounds

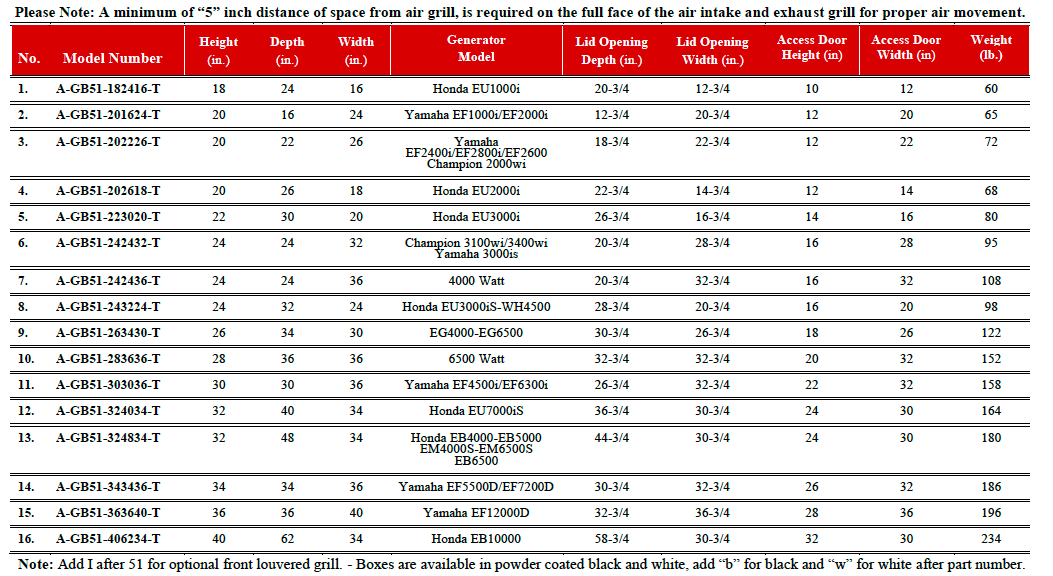

ATB Top Open Generator Storage Box Access Door & Lid Dimensions:

• 16"W x 24"D x 18"H: Access Door 12"W x 10"H / Lid 12.75"W x 20.75"D
• 24"W x 16"D x 20"H: Access Door 20"W x 12"H / Lid 20.75"W x 12.75"D
• 26"W x 22"D x 20"H: Access Door 22"W x 12"H / Lid 22.75"W x 18.75"D
• 18"W x 26"D x 20"H: Access Door 14"W x 12"H / Lid 14.75"W x 22.75"D
• 20"W x 30"D x 22"H: Access Door 16"W x 14"H / Lid 16.75"W x 26.75"D
• 32"W x 24"D x 24"H: Access Door 28"W x 16"H / Lid 28.75"W x 20.75"D
• 36"W x 24"D x 24"H: Access Door 32"W x 16"H / Lid 32.75"W x 20.75"D
• 24"W x 32"D x 24"H: Access Door 20"W x 16"H / Lid 20.75"W x 28.75"D
• 30"W x 34"D x 26"H: Access Door 26"W x 18"H / Lid 26.75"W x 30.75"D
• 36"W x 36"D x 28"H: Access Door 32"W x 20"H / Lid 32.75"W x 32.75"D
• 36"W x 30"D x 20"H: Access Door 32"W x 22"H / Lid 32.75"W x 26.75"D
• 34"W x 40"D x 32"H: Access Door 30"W x 24"H / Lid 30.75"W x 36.75"D
• 34"W x 48"D x 32"H: Access Door 30"W x 24"H / Lid 30.75"W x 44.75"D
• 36"W x 34"D x 34"H: Access Door 32"W x 26"H / Lid 32.75"W x 30.75"D
• 40"W x 36"D x 26"H: Access Door 36"W x 28"H / Lid 36.75"W x 32.75"D
• 34"W x 62"D x 40"H: Access Door 30"W x 32"H / Lid 30.75"W x 58.75"D

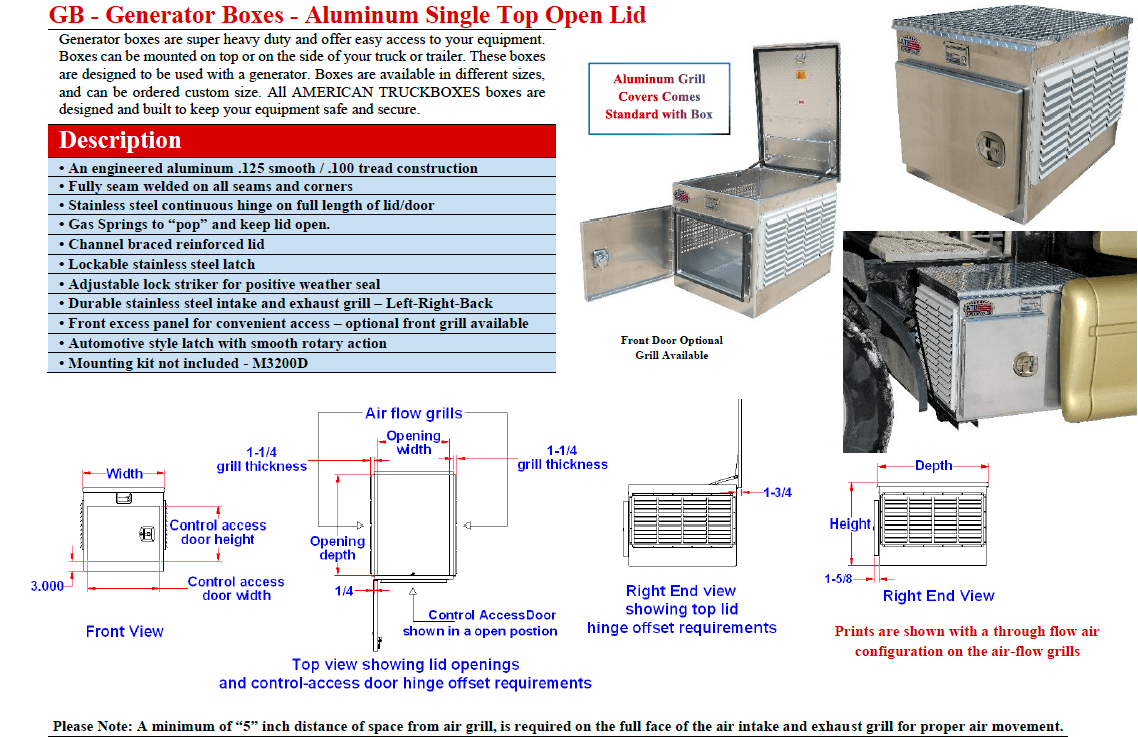

ATB Generator Box Top Open Spec Sheets:

• ATB Generator Box Top Open Measurement Specs
• ATB Generator Box Top Open Available Sizes & Dimensions

Other Generator Box Options:

• For more options see other generator box options.
